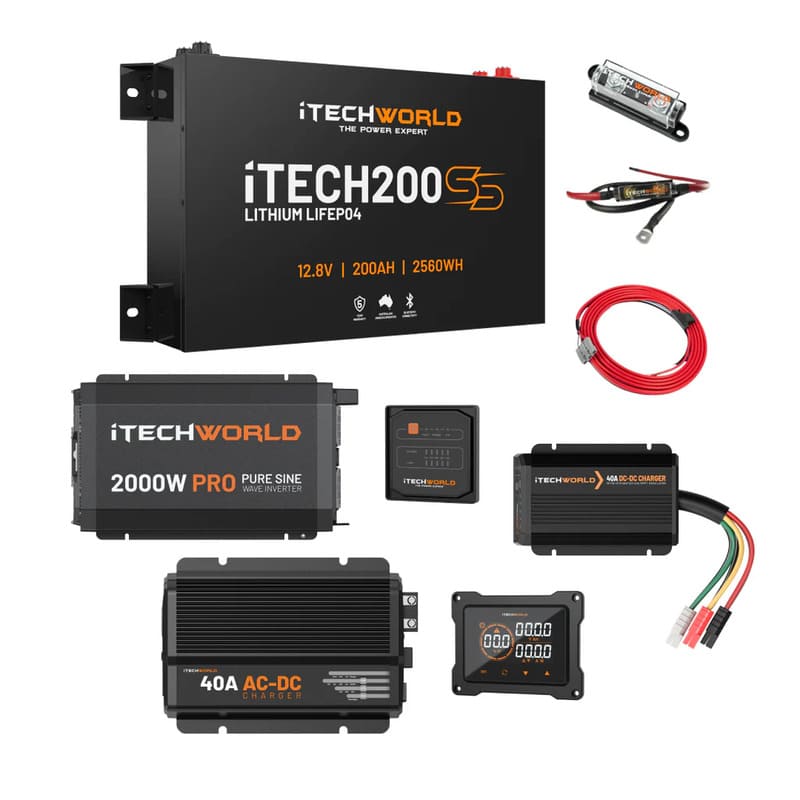

iTechworld Complete Super Slimline 4WD Dual Battery Kit 200Ah Lithium
WHY BUY FROM US:
Get tailored advice for your power needs
✓ Talk to an Expert: 1300 627 685
✓ Free Shipping Australia Wide
✓ 30 Day Returns
✓ Price Beat Guarantee
✓ Lifetime Customer Support
Need dependable off road power? iTechworld Complete Super Slimline 4WD Dual Battery Kit 200Ah Lithium has you covered.
The iTechworld Complete Super Slimline 4WD Dual Battery Kit is built for 4WD owners who want reliable power without giving up valuable space. With a slimline design and a strong 200Ah lithium setup, it gives you the freedom to run your essential gear while keeping your vehicle neat, practical, and ready for adventure.
Whether you are heading off for a weekend away or setting up for a longer trip, the iTechworld Complete Super Slimline 4WD Dual Battery Kit helps take the stress out of keeping everything powered. It is a smart option for running fridges, lights, chargers, and other camping or touring essentials, so you can enjoy the trip without constantly worrying about your battery setup.
One of the biggest benefits of this kit is its super slimline design. It is ideal for 4WD owners who need serious battery capacity but do not want a bulky system taking over their storage space. That means you get the power you need in a setup that is easier to fit into tighter areas, making it a practical choice for modern touring vehicles.
Because this is a complete kit, it also makes the whole process simpler. You are not left trying to piece together separate parts on your own. The iTechworld Complete Super Slimline 4WD Dual Battery Kit is designed to give you a more convenient, ready to go solution, which is great for anyone who wants dependable off grid power with less guesswork.
If you want a battery system that combines strong lithium performance, generous 200Ah capacity, and a space saving design, this kit is a great fit. The iTechworld Complete Super Slimline 4WD Dual Battery Kit gives you the confidence to head further, stay out longer, and enjoy a more comfortable 4WD setup wherever the track takes you.
WARRANTY & SUPPORT
The iTECH200SS warranty is 5 years (3 years full replacement 2 years pro-rata).
*Storage deep cycle battery only. It cannot be used as a cranking battery.

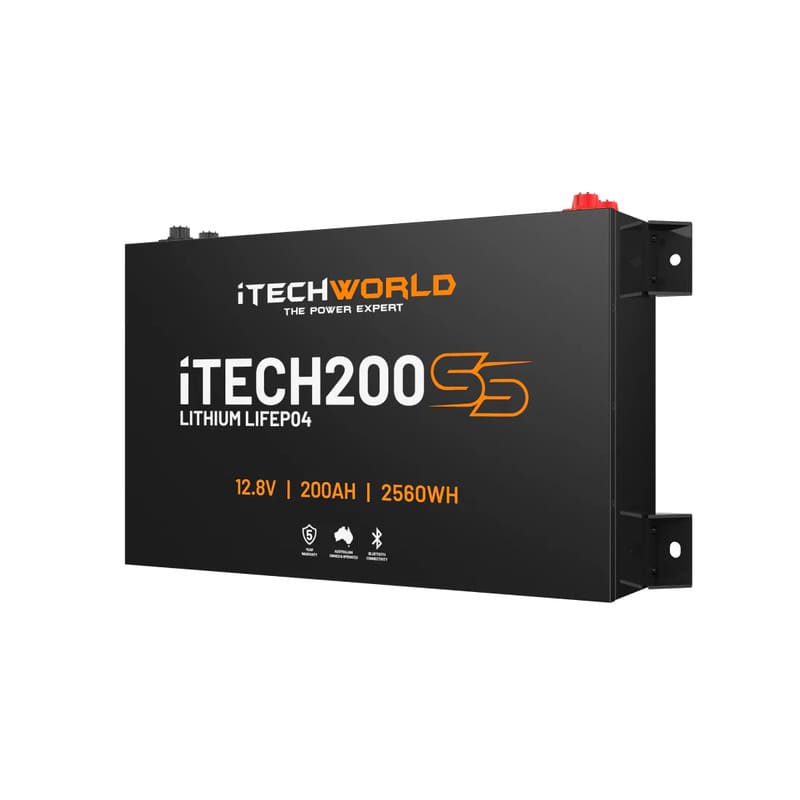

iTechworld 200SS Lithium Battery Specifications
| Voltage: | 12V |
| Nominal voltage: | 12.8V |
| C20 rating usable capacity: | 200Ah |
| Short circuit protection: | Yes |
| Optimum temperature range: | 5°C ~ 60°C |
| BMS operational temperature range: | -40°C ~ 80°C |
| Safety protection isolator: | 80°C |
| Recommended charge voltage | 14.4V |
| Maximum charge current: | 150A |
| BMS charge cutoff: | 15V |
| BMS low voltage cutoff: | 8.5-9V |
| Series connection: | Up to 48V (4 x batteries) |
| Parallel connection: | Unlimited |
| Life cycles @ 80% depth of discharge: | 5,000+ |
| Life cycles @ 40% depth of discharge: | 10,000+ |
| Continuous Discharge Rate: | 200A |
| Maximum Discharge Rate (5 Seconds): | 640A |
| Dimensions (LxWxH): | 514 x 327 x 126mm (580 L with brackets and 350 H including terminals) |
| Weight: | 25.5kg |
| Terminal type: | M8 |
| Case material: | Stainless steel |

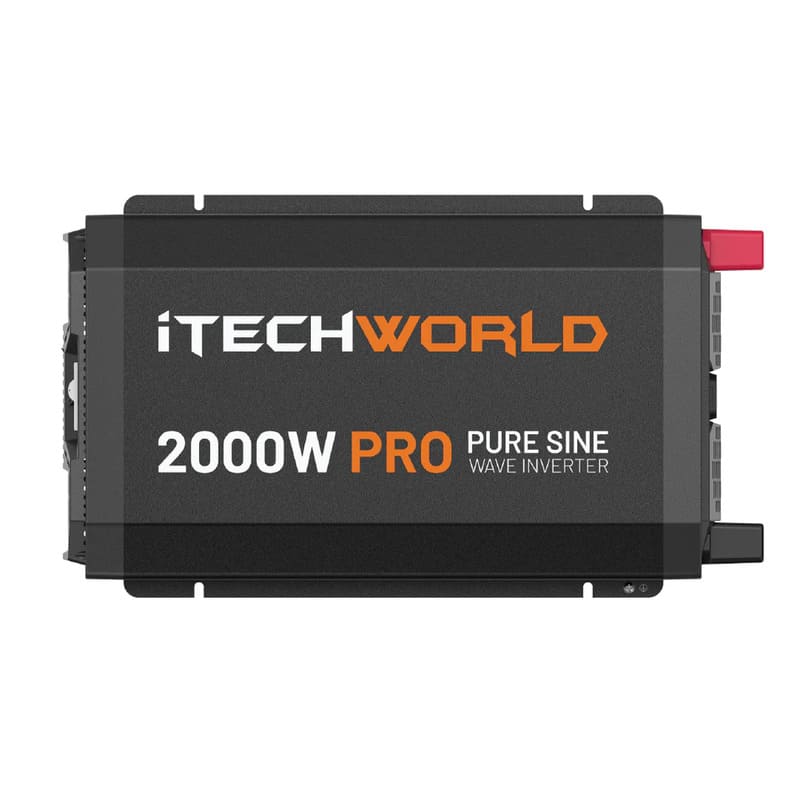

2000W Pure Sine Wave Inverter PRO Specifications
| Maximum continuous output: | 2000W |
| Peak output: | 4000W |
| Battery compatibility: | Standard lead-acid, AGM, Gel or LiFePO4 |
| Input voltage range | 10.5-15.5V |
| Output plug rating: | 10A |
| Output voltage & current: | 240V - 50Hz |
| No load draw: | <1.3A |
| Efficiency: | 90% |
| Output waveform: | Pure Sine Wave |
| Total Harmonic Distotion (THD): | <3% |
| IP rating: | IP22 |
| Operating temperature: | -10°C ~ 50°C |
| Storage temperature: | -30°C ~ 70°C |
| Over voltage protection | 15.5±0.2V DC |
| Under voltage protection: | 10.5±0.2V DC |
| Short circuit protection | 1 second |
| Dimensions (LxWxH): | 459 x 265 x 97mm |
| AC transfer switch: | 30ms |

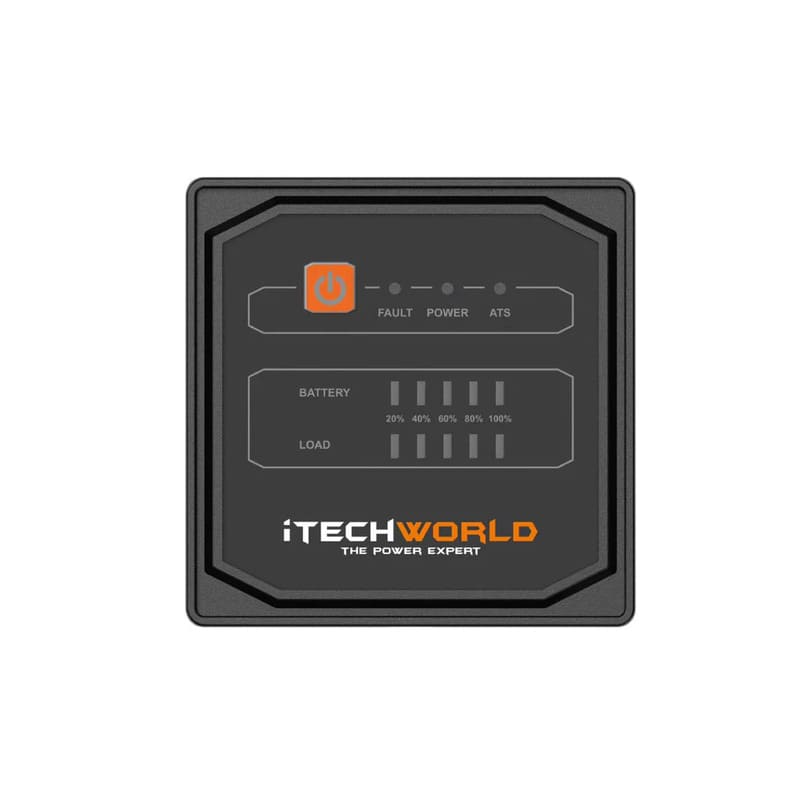

| Remote terminal: | RJ12 |
| Remote dimensions (LxWxH): | 86 x 86 x 19mm |
| Safety certifications: | The iTechworld inverter range fully complies with AS/NZS 4763:2011 and IEC/EN 62368-1 including Australian deviations |

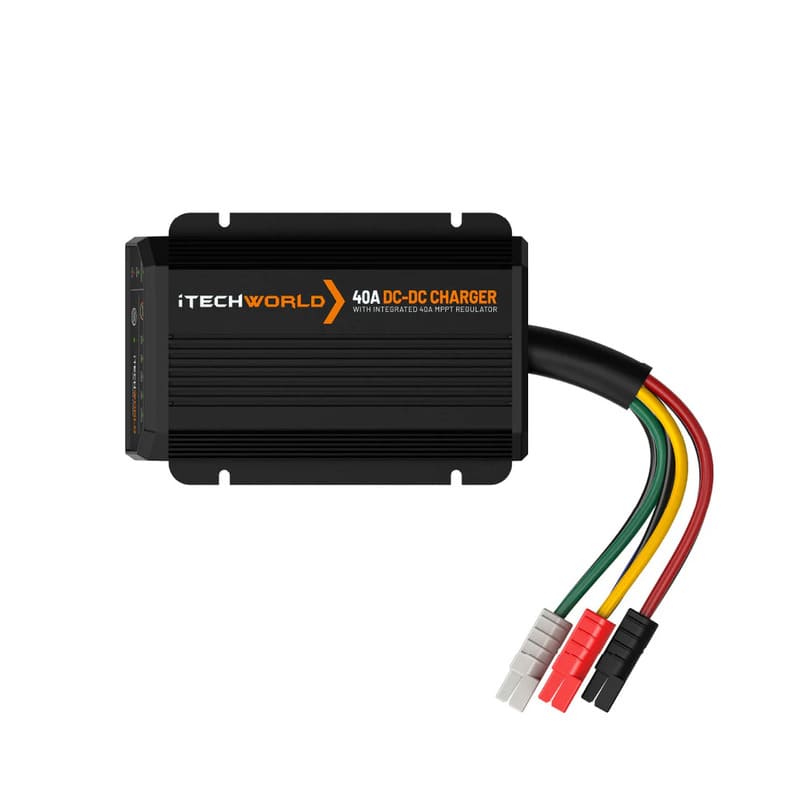

iTECHDCDC40 DCDC + MPPT Charger Specifications
| Battery capacity: | 80-800Ah |
| Vehicle input voltage: | 9-32V |
| Solar input voltage: | 10-32V |
| Maximum input current: | 45A |
| Input fuse rating: | 60A |
| Continuous output current: | Up to 40A |
| Output fuse rating: | 60A |
| Minimum auxiliary battery charge start voltage | 4V |
| Standby current: | <10mA |
| Battery type: | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 |
| Operating temperature: | -20°C ~ 80°C |
| IP rating: | IP67 |
| Dimensions (LxWxH): | 188 x 127 x 39mm |
| Weight: | 950g |

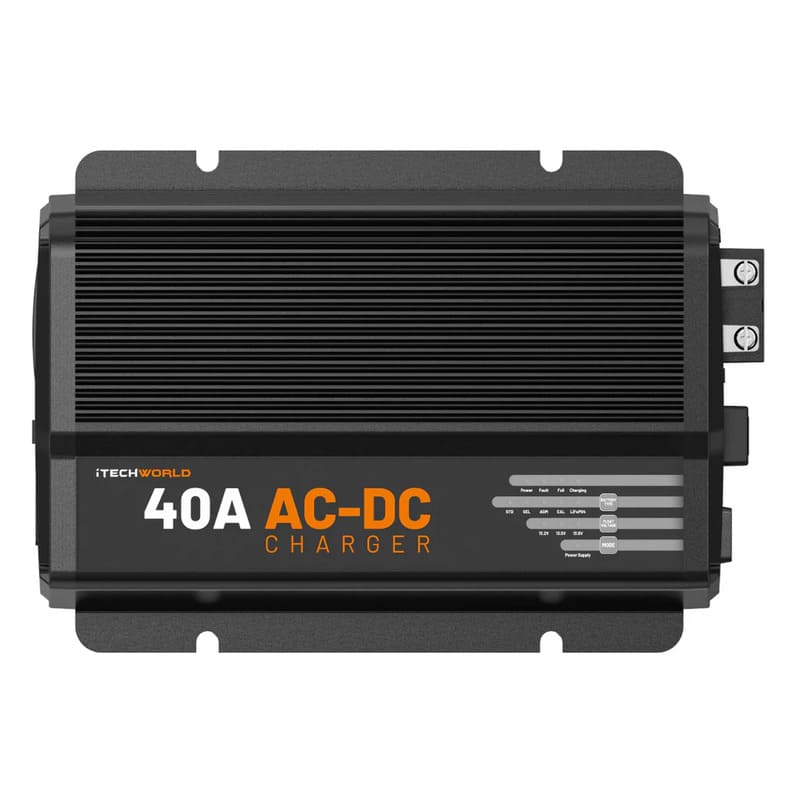

iTECHBC40 Intelligent Battery Charger
| Battery capacity: | 100-1200Ah |
| Maximum input current: | 4.8A |
| Input fuse rating: | 80A |
| Continuous output current: | Up to 40A |
| Output fuse rating: | 60A |
| Minimum auxiliary battery charge start voltage | 4V |
| Standby current: | <18mA |
| Battery type: | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 |
| Operating temperature: | -20°C ~ 80°C |
| IP rating: | IP20 |
| Dimensions | 275 x 187 x 70mm |
| Weight: | 2.5kg |

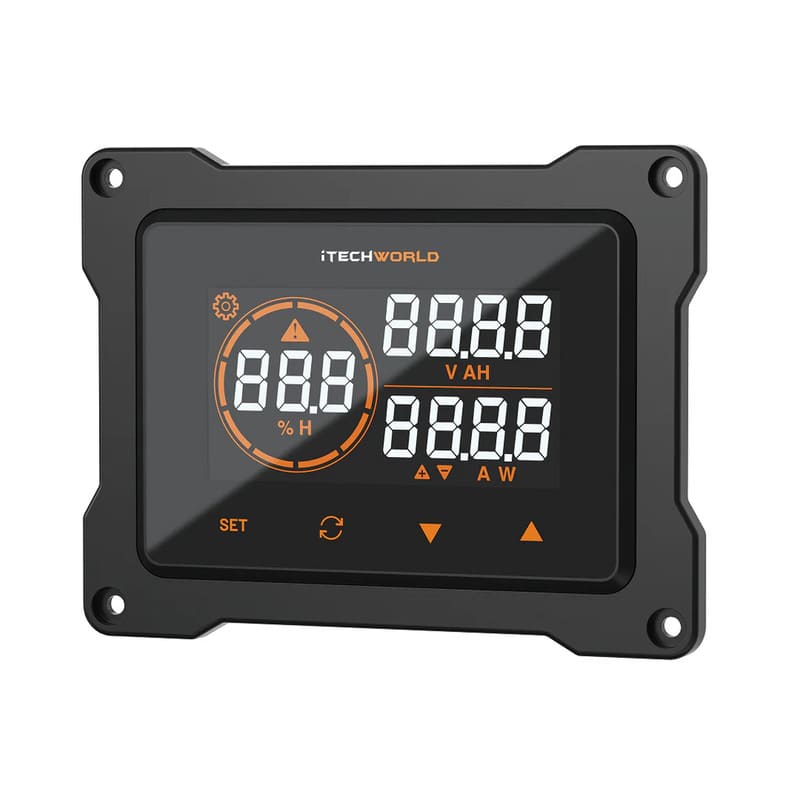

iTECHBM500 Battery Monitor with 500A Shunt Specifications
| Supply voltage: | 10-100V |
| Battery capacity: | 10-999Ah |
| Maximum measured current: | 500A |
| Power consumption (screen off): | <2mA |
| Power consumption (screen brightness @ 10%): | <20mA |
| Power consumption (screen brightness @ 100%): | <60mA |
| Voltage accuracy: | ±1% |
| Current accuracy: | ±1% |
| Operating temperature: | -20°C ~ 80°C |
| Exterior bracket dimensions (LxWxH): | 106 x 81 x 18mm |
| Mounting bracket points (LxW): | 95 x 70mm |
| Monitor backing dimensions (LxWxH): | 80 x 59 x 16mm |
| IP rating: | IP20 |
