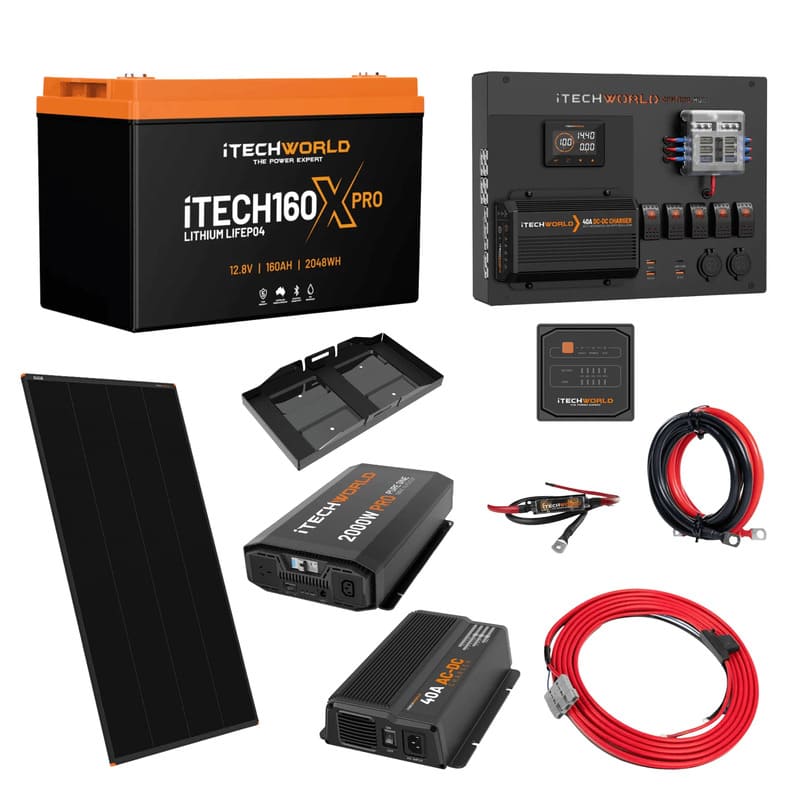

Need Extra Power on the Road? iTechworld Expansion Canopy Dual Battery Kit 160Ah Lithium Has You Covered
The iTechworld Expansion Canopy Dual Battery Kit 160Ah Lithium is made for drivers who need more power from their canopy setup. It gives you a reliable way to run your fridge, lights, devices and other 12V gear while you are away from mains power.
With 160Ah of lithium capacity, this kit is a great choice for touring, camping and weekend getaways. It helps keep your essentials powered for longer, so you can spend more time enjoying the trip and less time worrying about your battery level.
The iTechworld Expansion Canopy Dual Battery Kit is designed to suit canopy installations where extra power makes a big difference. It is ideal for 4WDs, utes and adventure setups that need dependable energy on the road.
Whether you are setting up camp for a night or heading off on a longer journey, this battery kit gives you the confidence to travel with the comforts you need. It is a practical upgrade for anyone wanting a stronger, more capable power setup in their canopy.
WARRANTY & SUPPORT
The iTECH160X warranty is 5 years (3 years full replacement, 2 years pro-rata).
*Storage deep cycle battery only. It cannot be used as a cranking battery.

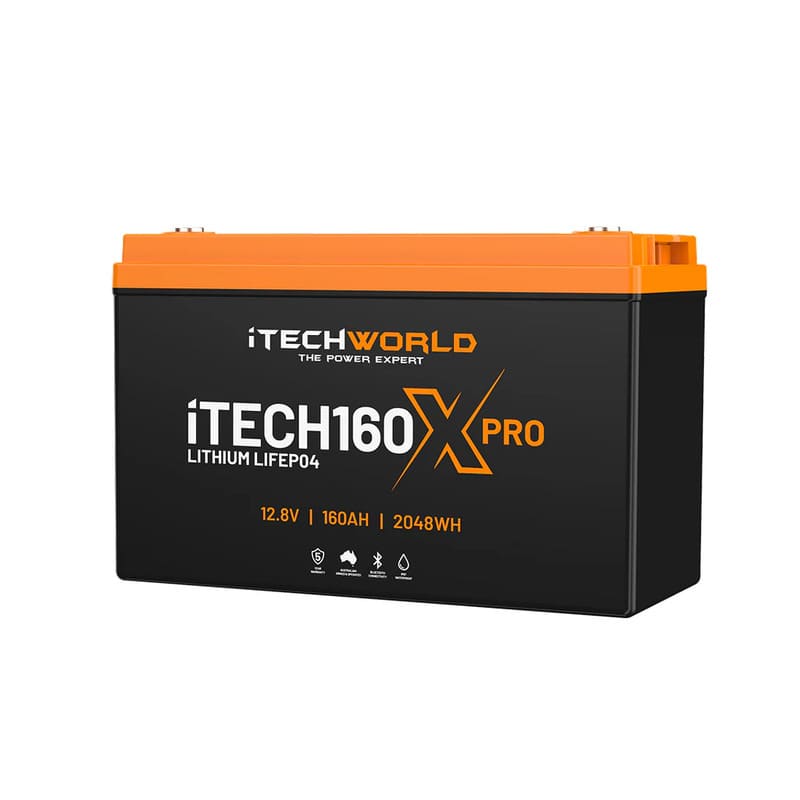

iTECH160X PRO 160Ah Lithium LiFePO₄ Battery Specifications
| Voltage: | 12V |
| Nominal voltage: | 12.8V |
| C20 rating usable Amps | 160Ah |
| Short circuit protection: | Yes |
| Optimum temperature range: | 5°C ~ 60°C |
| BMS operational temperature range: | 5°C ~ 80°C |
| Safety protection isolator: | 80°C |
| Recommended charge voltage: | 14.4V |
| Maximum charge current: | 100A |
| BMS charge cutoff: | 15V |
| BMS low voltage cutoff: | 8.5-9V |
| Series connection: | Up to 48V (4 x batteries) |
| Parallel connection: | Unlimited |
| Life cycles @ 80% depth of discharge: | 5,000+ |
| Life cycles @ 40% depth of discharge: | 10,000+ |
| Continuous Discharge Rate: | 150A |
| Maximum Discharge Rate (5 Seconds): | 430A |
| Dimensions (LxWxH): | 330 x 173 x 215mm |
| Weight: | 16kg |
| Terminal type: | M8 |
| Case material: | ABS |

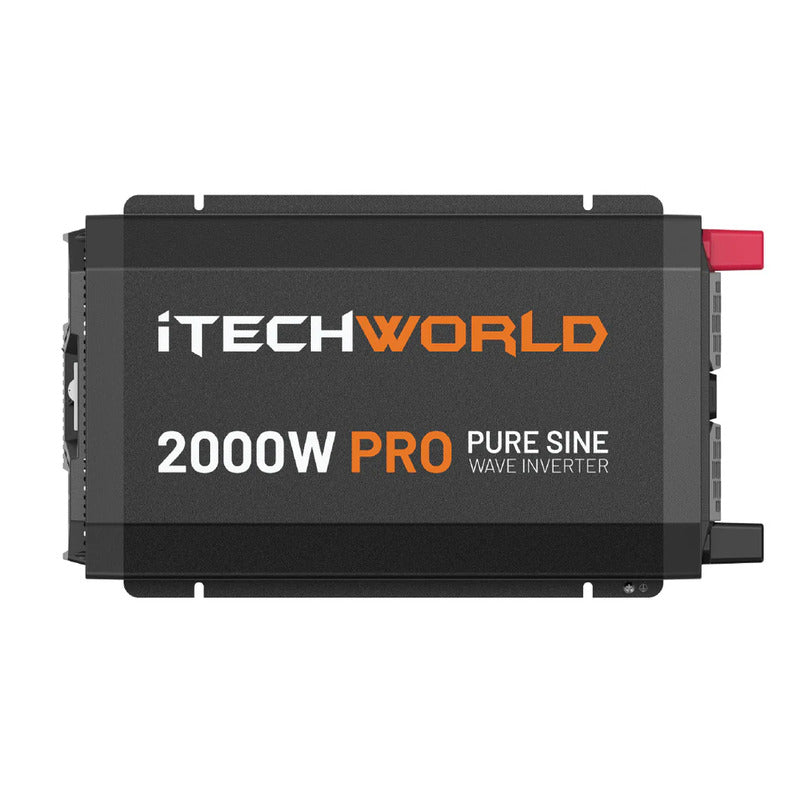

2000W PRO Pure Sine Wave Inverter Specifications
| Maximum continuous output: | 2000W |
| Peak output: | 4000W |
| Battery compatibility: | Standard lead-acid, AGM, Gel or LiFePO4 |
| Input voltage range: | 10.5-15.5V |
| Output plug rating: | 10A |
| Output voltage & current | 240V - 50Hz |
| No load draw: | <1.3A |
| Efficiency | 90% |
| Output waveform: | Pure Sine Wave |
| Total Harmonic Distotion (THD): | <3% |
| IP rating: | IP22 |
| Operating temperature: | -10°C ~ 50°C |
| Storage temperature: | -30°C ~ 70°C |
| Over voltage protection: | 15.5±0.2V DC |
| Under voltage protection: | 10.5±0.2V DC |
| Short circuit protection: | 1 second |
| Dimensions (LxWxH): | 459 x 265 x 97mm |
| AC transfer switch: | 30ms |
| Remote terminal: | RJ12 |
| Remote dimensions (LxWxH): | 86 x 86 x 19mm |
| Safety certifications: | The iTechworld inverter range fully complies with AS/NZS 4763:2011 and IEC/EN 62368-1 including Australian deviations |
| Weight: | 7.0kg |

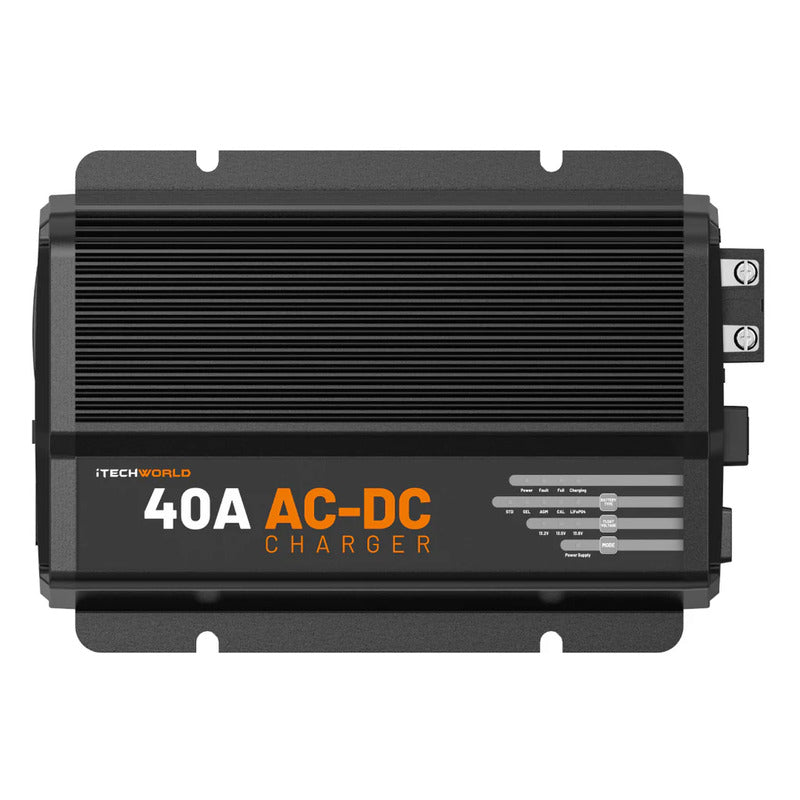

iTECHBC40 AC Intelligent Battery Charger Specifications
| Battery capacity: | 100-1200Ah |
| General Battery capacity: 100-1200Ah Maximum input current: | 4.8A |
| Input fuse rating: | 80A |
| Continuous output current: | Up to 40A |
| Output fuse rating: | 60A |
| Minimum auxiliary battery charge start voltage | 4V |
| Standby current: | <18mA |
| Battery type: | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 |
| Operating temperature: | -20°C ~ 80°C |
| IP rating: | IP20 |
| Dimensions | 275 x 187 x 70mm |
| Weight: | 2.5kg |

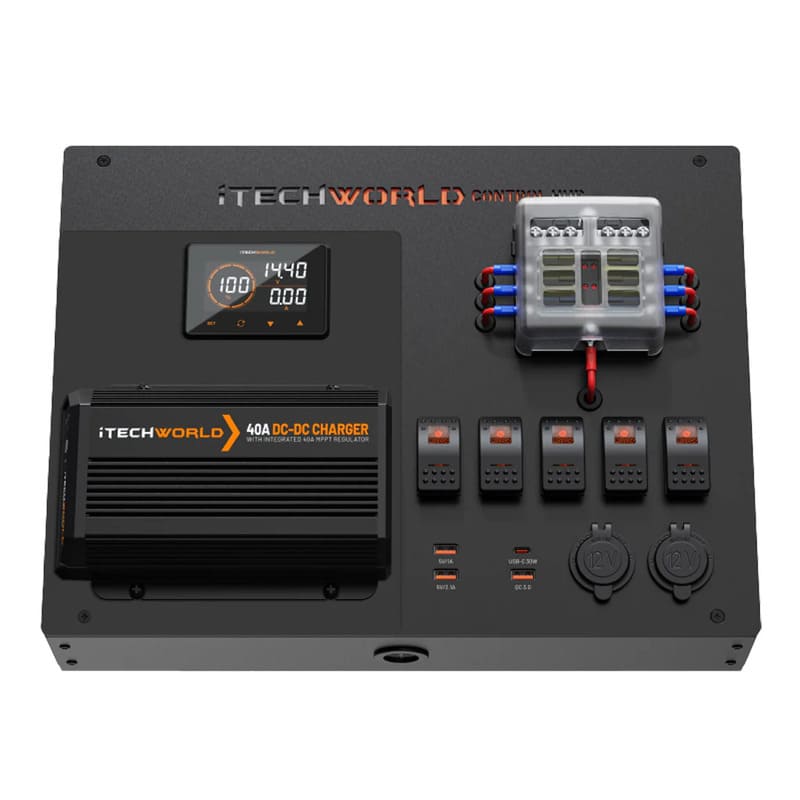

Premium Control Hub Specifications
| Dimensions (LxWxH): | 403 x 304 x 116mm |
| Dimensions w/ DCDC (LxWxH): | 403 x 304 x 119mm |
| Outputs: | 2 x 12V 15A cigarette outputs USB-C output 3 x QC3.0 |
| Inputs/outputs: | 4 x 50A Anderson plugs |
| Inputs: | 3-pin 50A Anderson plug (DCDC alternator input) 50A Anderson plug (DCDC solar input) |
DCDC40 Charger Specifications
| Battery capacity: | 80-800Ah |
| Vehicle input voltage: | 9-32V |
| Solar input voltage: | 10-32V |
| Maximum input current: | 45A |
| Input fuse rating: | 60A |
| Continuous output current: | Up to 40A |
| Output fuse rating: | 60A |
| Minimum auxiliary battery charge start voltage | 4V |
| Standby current: | <10mA |
| Battery type | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 |
| Operating temperature: | -20°C ~ 80°C |
| IP rating: | IP67 |
| Dimensions (LxWxH): | 188 x 127 x 39mm |
| Weight: | 950g |

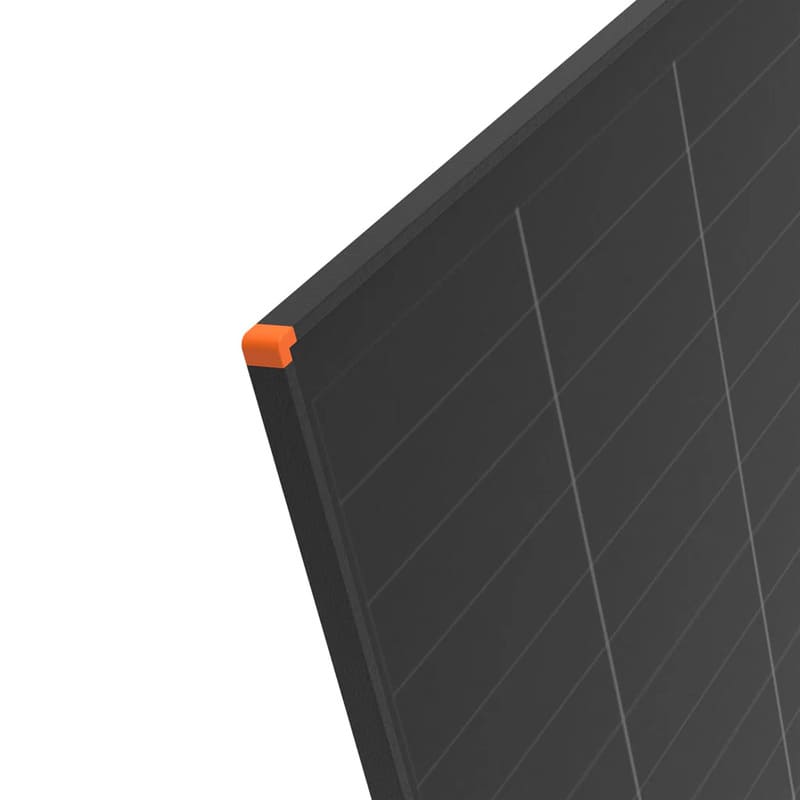

200W Hard Frame Solar Panel Specifications
| Maximum wattage: | 200W |
| Max voltage: | 18.1V |
| Open-circuit voltage: | 22V |
| Short circuit current: | 12.2A |
| Normal Operating Cell Temperature (NOCT): | 45+2°C |
| Maximum system voltage: | 1000VDC |
| Maximum series fuse rating: | 15A |
| Operating temperature: | -40°C ~ 85°C |
| Cable length: | 85cm |
| Dimensions (LxWxH): | 1460 x 670 x 17mm |
| Weight: | 9.32kg |
