iTechworld Expansion Super Slimline Canopy Dual Battery Kit 300Ah Lithium
WHY BUY FROM US:
Get tailored advice for your power needs
✓ Talk to an Expert: 1300 627 685
✓ Free Shipping Australia Wide
✓ 30 Day Returns
✓ Price Beat Guarantee
✓ Lifetime Customer Support

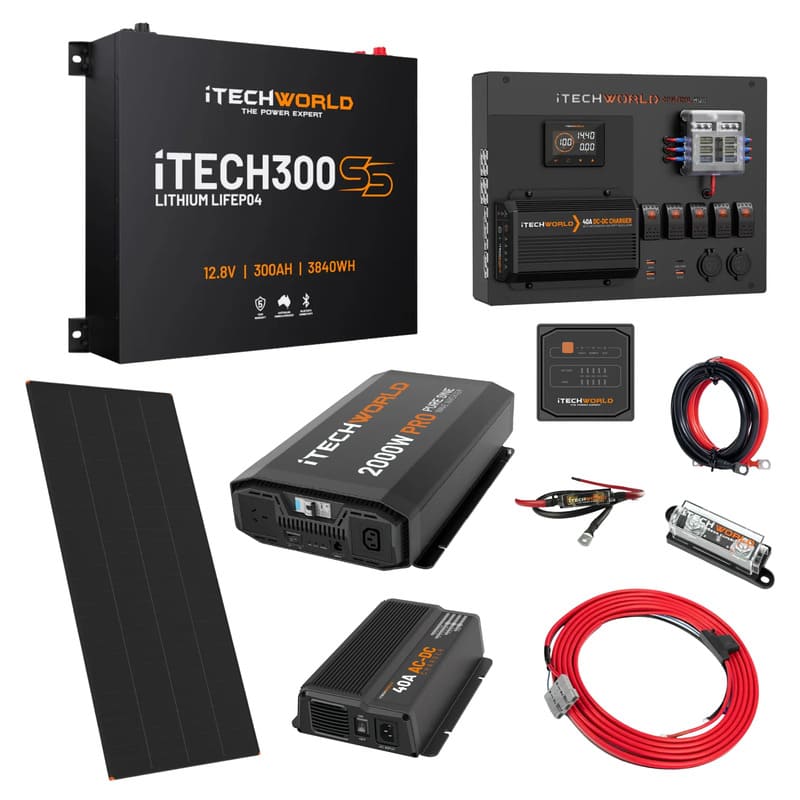

Need more canopy power? Choose the iTechworld Expansion Super Slimline Canopy Dual Battery Kit 300Ah Lithium
The iTechworld Expansion Super Slimline Canopy Dual Battery Kit 300Ah Lithium is made for canopy setups that need serious power without wasting space. Its super slimline design helps keep your canopy neat, while the 300Ah lithium capacity gives you more freedom on longer trips.
This kit is ideal for running your fridge, lights, charging gear and other 12V accessories while you are away from mains power. Whether you are touring, camping or working from your ute, it helps keep your gear powered and ready.
The iTechworld Expansion Super Slimline Canopy Dual Battery Kit is a smart choice if you already have a canopy power setup and want to expand your battery capacity. It gives you extra lithium storage in a compact format, so you can make better use of the space you have.
Built for Australian 4WD travel, this battery kit suits anyone who wants dependable power for remote trips, weekends away or everyday work use. It is practical, space-saving and designed to help you stay powered wherever the road takes you.
PACKAGE CONTENTS
1 x iTECH300SS 300Ah Lithium 12v Battery
1 x User Guide
1 x Bluetooth App User Guide here
SUPPORT
The warranty is 5 years from the date of purchase (3 years full replacement, 2 years pro-rata).

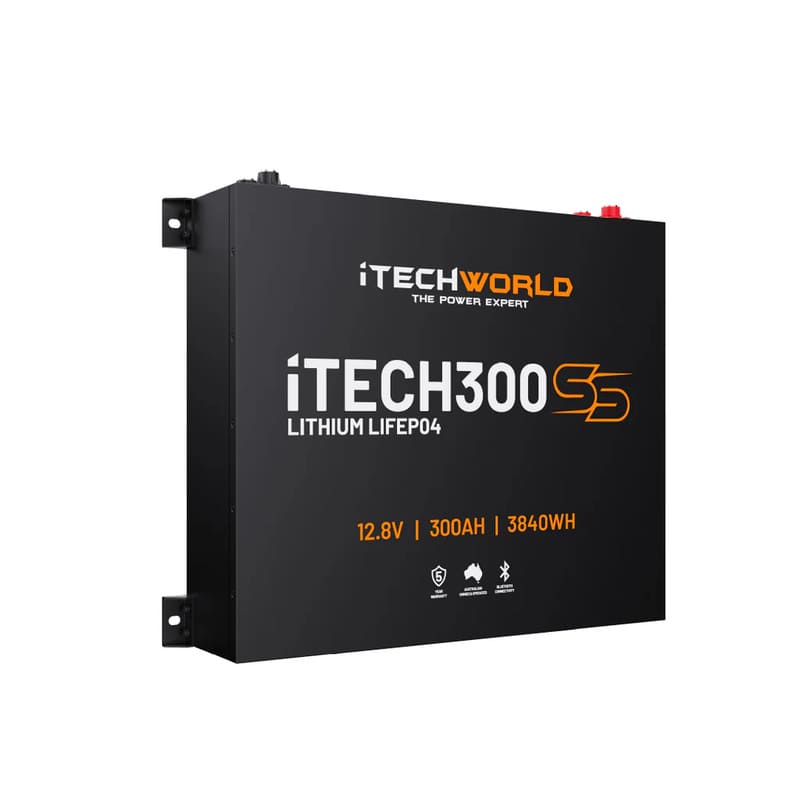

iTECH300SS 300Ah Super Slim Lithium LiFePO₄ Battery Specifications
| Voltage: | 12V |
| Nominal voltage: | 12.8V |
| C20 rating usable capacity: | 300Ah |
| Short circuit protection: | Yes |
| Optimum temperature range: | 5°C ~ 60°C |
| BMS operational temperature range: | -40°C ~ 80°C |
| Safety protection isolator: | 80°C |
| Recommended charge voltage: | 14.4V |
| Maximum charge current: | 150A |
| BMS charge cutoff: | 15V |
| BMS low voltage cutoff: | 8.5-9V |
| Series connection: | Up to 48V (4 x batteries) |
| Parallel connection: | Unlimited |
| Life cycles @ 80% depth of discharge: | 5,000+ |
| Life cycles @ 40% depth of discharge: | 10,000+ |
| Continuous Discharge Rate: | 200A |
| Maximum Discharge Rate (5 Seconds): | 640A |
| Dimensions (LxWxH): | 526 x 126 x 450mm (578 L with brackets and 470 H including terminals) |
| Weight: | 38.25kg |
| Terminal type: | M8 |
| Case material: | Stainless steel |

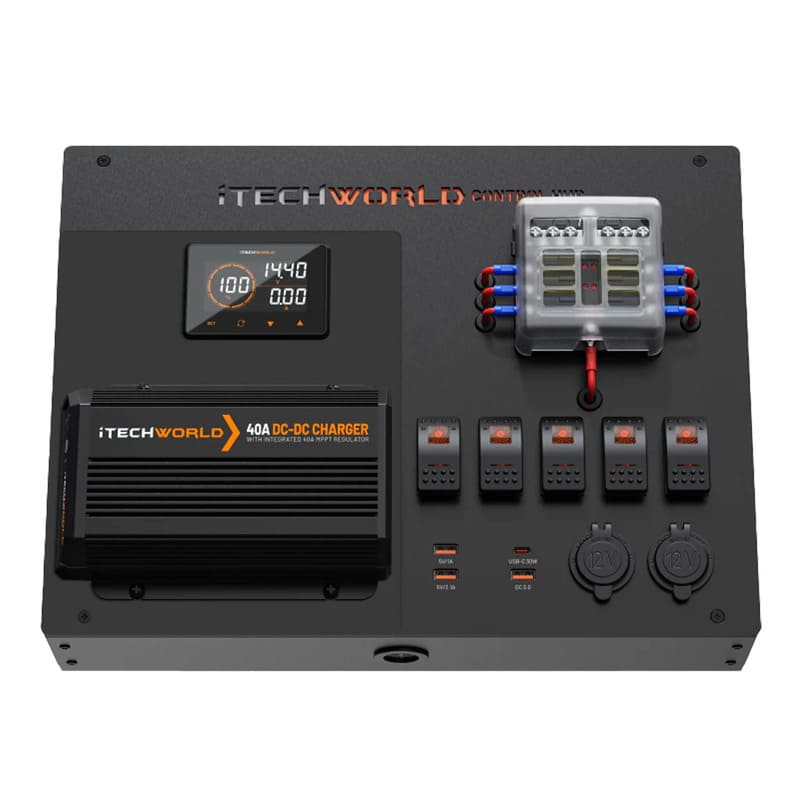

iTechworld Premium Control Hub Specifications
| Dimensions (LxWxH): | 403 x 304 x 116mm |
| Dimensions w/ DCDC (LxWxH): | 403 x 304 x 119mm |
| Outputs: | 2 x 12V 15A cigarette outputs USB-C output 3 x QC3.0 |
| Inputs/outputs: | 4 x 50A Anderson plugs |
| Inputs: | 3-pin 50A Anderson plug (DCDC alternator input) 50A Anderson plug (DCDC solar input) |
iTechworld DCDC40 Charger Specifications
| Battery capacity: | 80-800Ah |
| Vehicle input voltage: | 9-32V |
| Solar input voltage: | 10-32V |
| Maximum input current: | 45A |
| Input fuse rating: | 60A |
| Continuous output current: | Up to 40A |
| Output fuse rating: | 60A |
| Minimum auxiliary battery charge start voltage | 4V |
| Standby current: | <10mA |
| Battery type: | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 |
| Operating temperature: | -20°C ~ 80°C |
| IP rating: | IP67 |
| Dimensions (LxWxH): | 188 x 127 x 39mm |
| Weight: | 950g |

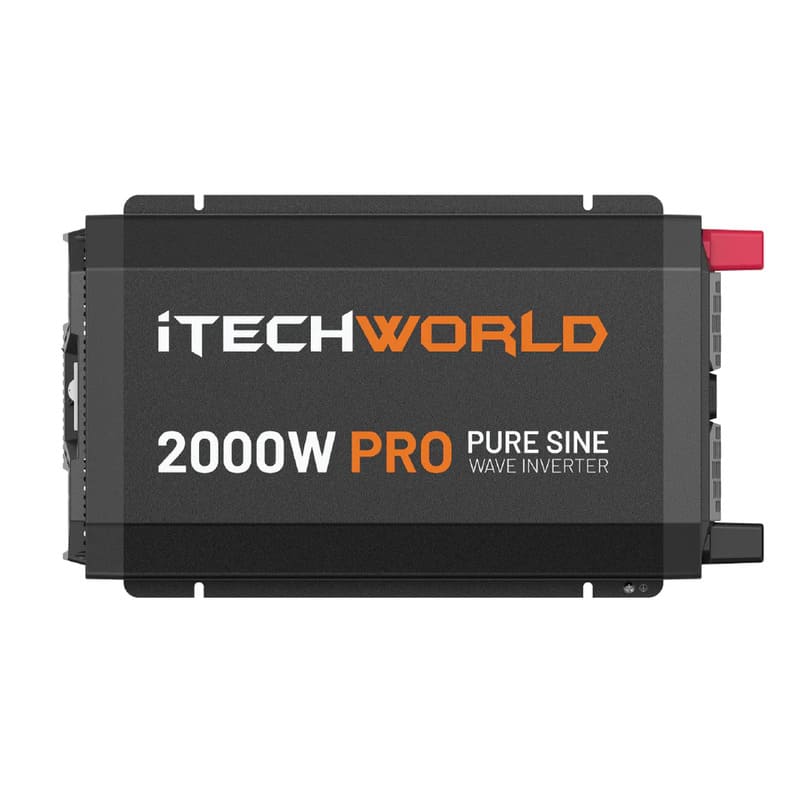

2000W PRO Pure Sine Wave Inverter Specifications
| Maximum continuous output: | 2000W |
| Peak output: | 4000W |
| Battery compatibility: | Standard lead-acid, AGM, Gel or LiFePO4 |
| Input voltage range: | 10.5-15.5V |
| Output plug rating: | 10A |
| Output voltage & current: | 240V - 50Hz |
| No load draw: | <1.3A |
| Efficiency: | 90% |
| Output waveform: | Pure Sine Wave |
| Total Harmonic Distotion (THD): | <3% |
| IP rating: | IP22 |
| Operating temperature: | -10°C ~ 50°C |
| Storage temperature: | -30°C ~ 70°C |
| Over voltage protection: | 15.5±0.2V DC |
| Under voltage protection: | 10.5±0.2V DC |
| Short circuit protection: | 1 second |
| Dimensions (LxWxH): | 459 x 265 x 97mm |
| AC transfer switch: | 30ms |
| Remote terminal: | RJ12 |
| Remote dimensions (LxWxH): | 86 x 86 x 19mm |
| Safety certifications: | The iTechworld inverter range fully complies with AS/NZS 4763:2011 and IEC/EN 62368-1 including Australian deviations |
| Weight: | 7.0kg |

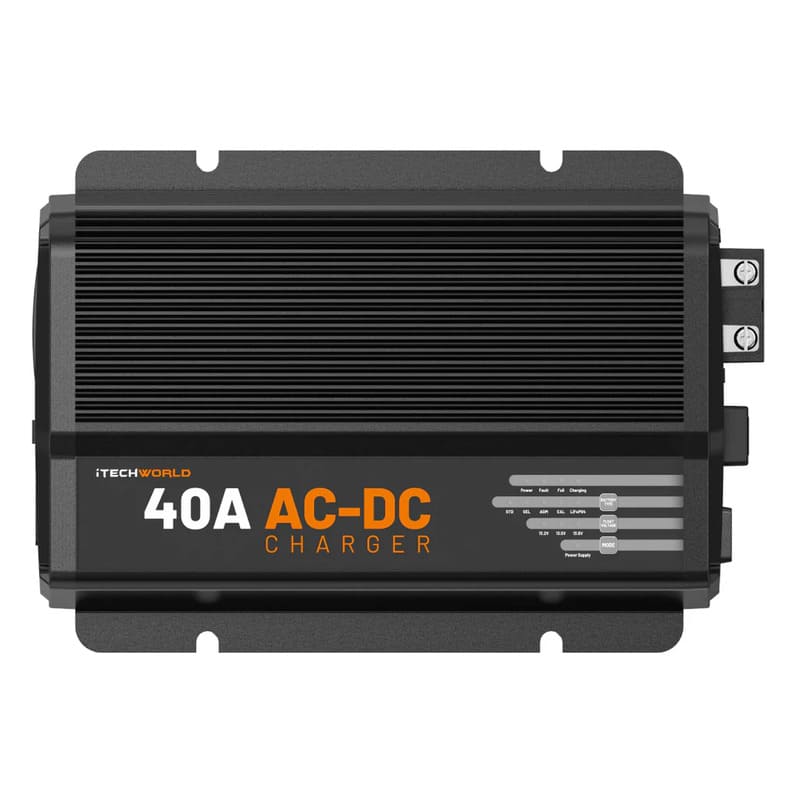

iTECHBC40 AC Charger Specifications
| Battery capacity: | 100-1200Ah |
| Maximum input current: | 4.8A |
| Input fuse rating: | 80A |
| Continuous output current: | Up to 40A |
| Output fuse rating: | 60A |
| Minimum auxiliary battery charge start voltage | 4V |
| Standby current: | <18mA |
| Battery type: | Standard lead-acid, Gel, AGM, Calcium & LiFePO4 |
| Operating temperature: | -20°C ~ 80°C |
| IP rating: | IP20 |
| Dimensions | 275 x 187 x 70mm |
| Weight: | 2.5kg |

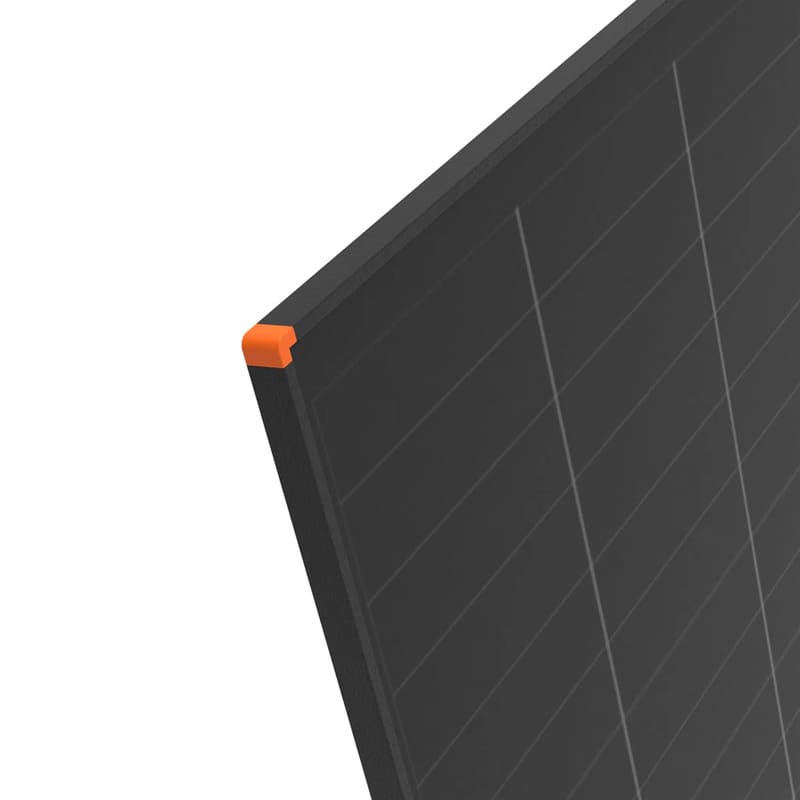

200W Hard Frame Solar Panel Specifications
| Maximum wattage: | 200W |
| Max voltage: | 18.1V |
| Open-circuit voltage: | 22V |
| Short circuit current: | 12.2A |
| Normal Operating Cell Temperature (NOCT): | 45+2°C |
| Maximum system voltage: | 1000VDC |
| Maximum series fuse rating: | 15A |
| Operating temperature: | -40°C ~ 85°C |
| Cable length: | 85cm |
| Dimensions (LxWxH): | 1460 x 670 x 17mm |
| Weight: | 9.32kg |
