Need Fast and Reliable Off-Grid Charging? The Renogy 40A DC-DC Battery Charger with MPPT Keeps Your Batteries Powered Wherever You Go

If you're looking for a reliable way to keep your auxiliary batteries charged while travelling, the Renogy 40A DC-DC Battery Charger with MPPT is built to make off-grid power easier. Whether you're heading away in a caravan, camper trailer, 4WD or motorhome, this charger helps ensure your batteries stay charged and ready to power your essential equipment.

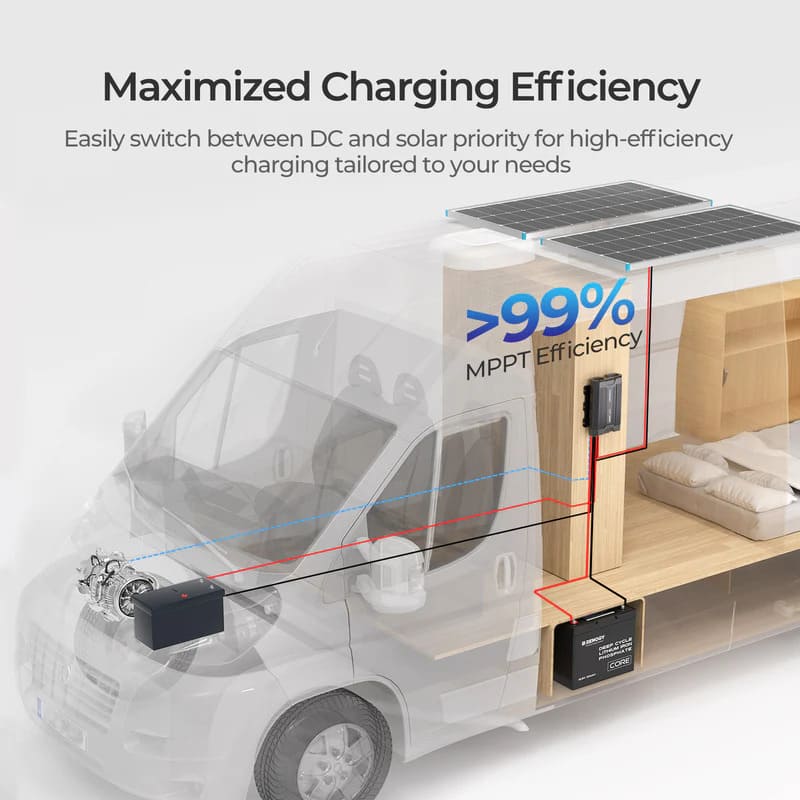

The 40A DC-DC Battery Charger with MPPT combines alternator charging and solar charging into one smart unit. While you're driving, it uses power from your vehicle's alternator to charge your auxiliary battery. When solar panels are connected, the integrated MPPT technology works to maximise the energy collected from the sun, helping you get more out of your solar setup.

With a powerful 40A charging capacity, this charger is ideal for larger battery banks and users with higher energy demands. It delivers efficient multi-stage charging that helps maintain battery health, improve charging performance and extend the overall lifespan of your batteries. This means less time worrying about power and more time enjoying your adventure.

The built-in MPPT solar controller continuously monitors solar input and adjusts to find the optimal charging point. This allows the system to capture more usable energy, even when weather conditions or sunlight levels change throughout the day. The result is faster and more efficient charging compared to traditional solar regulators.

Designed for tough Australian conditions, the Renogy 40A DC-DC Battery Charger with MPPT offers dependable performance wherever your travels take you. Whether you're powering a fridge, lighting, communication devices or other off-grid essentials, this charger provides a simple and effective solution for keeping your batteries charged and your power system running smoothly.

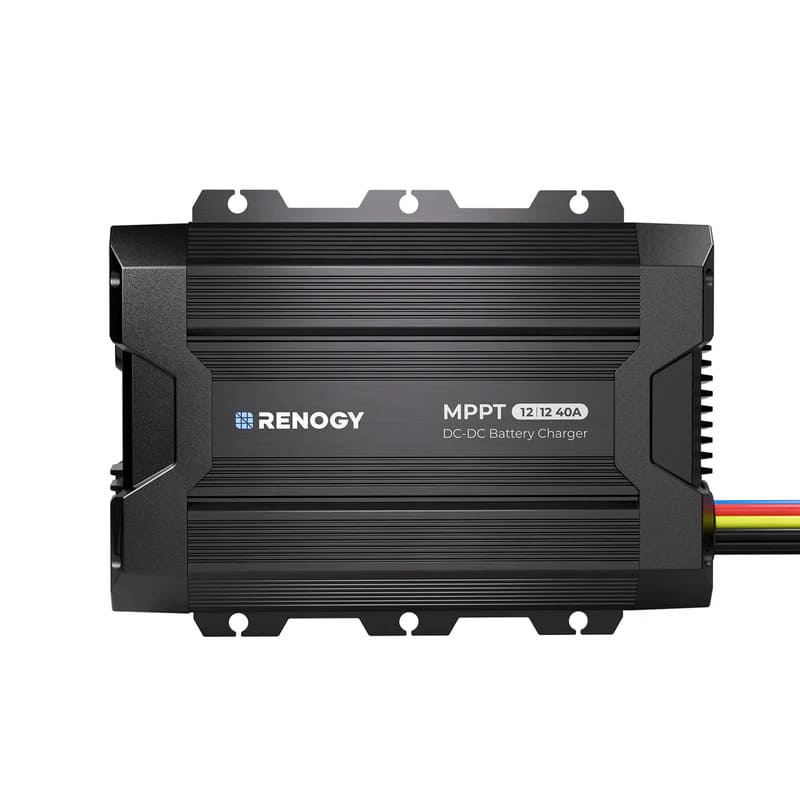

Renogy 40A DC-DC Battery Charger with MPPT  on a white background
Renogy 40A DC-DC Battery Charger with MPPT - features summary

Package Contents

  • Battery Charger x 1
  • Heat-shrink tubings x 7
  • Mounting Screws x 4

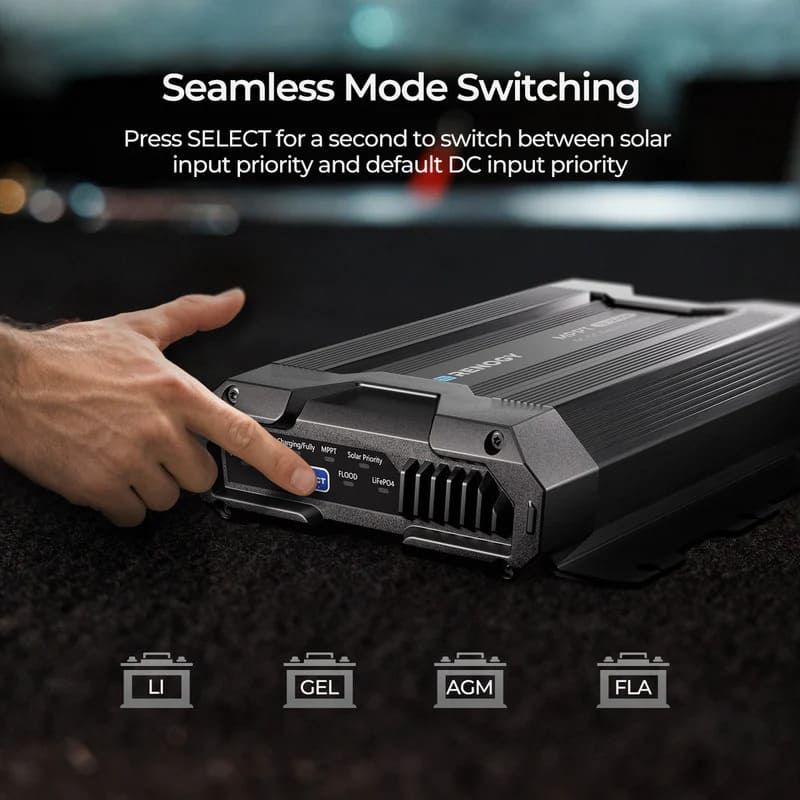

Renogy 40A DC-DC Battery Charger with MPPT  - seamless mode switching
Renogy 40A DC-DC Battery Charger with MPPT - on the rocks

Renogy 40A DC-DC Battery Charger with MPPT Specifications

Output Voltage 0-16V
Solar Input Voltage Range 12V -30V
DC Input Voltage Range 11.2V-24V
Alternator Input Traditional Alternator: 13.2-16.0VDC Smart Alternator (Euro 6): 12-16.0VDC
Maximum Output Current Rating 40A
Output Power 584W
Battery Types AGM, Gel, Flooded, Lithium-iron Phosphate
Input Fuse Rating 60A
Output Fuse Rating 50A
Charging Efficiency ≥93%
Idle Power Consumption <10 mA
Model RBC40D1S
Terminal Size /
Grounding Common Negative
Communication /
Operating Temperature -4℉ -113℉ /-20 ℃ - 45℃
Storage Temperature -4℉ -140℉ /-20 ℃ - 60℃
Humidity 0%~95% RH
Cooling Heat Sink
Enclosure Rating IP31
Dimensions (LxWxH) 1.2 kg /2.65 lb
Weight 1.2 kg /2.65 lb
Regulatory and Safety Specifications FCC Path 15, Class B,CE,RoHS,SAA

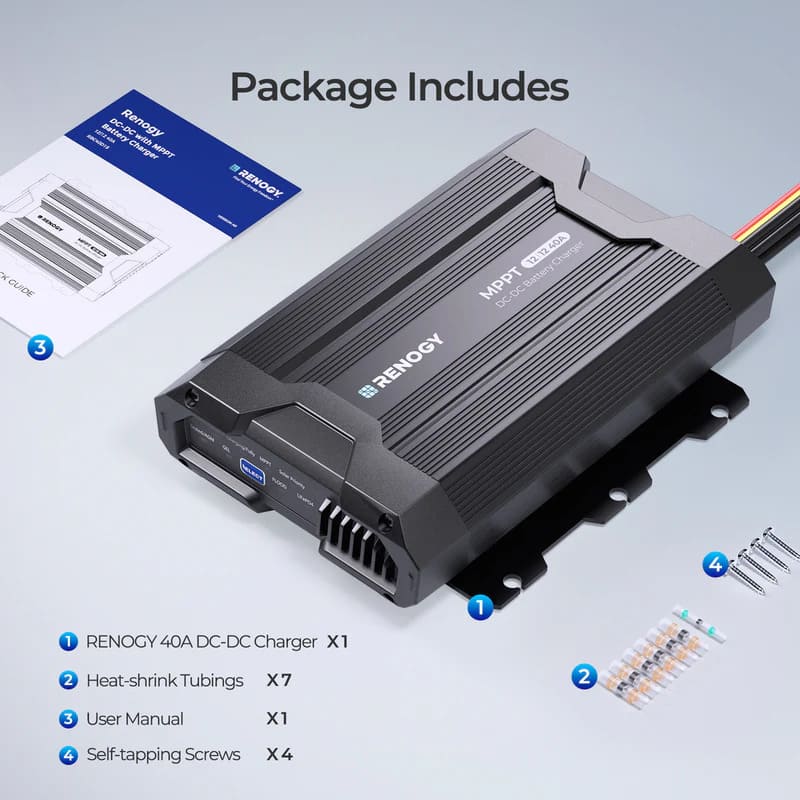

Renogy 40A DC-DC Battery Charger with MPPT - package content
Renogy 40A DC-DC Battery Charger with MPPT  - certifications
Description

Need Fast and Reliable Off-Grid Charging? The Renogy 40A DC-DC Battery Charger with MPPT Keeps Your Batteries Powered Wherever You Go

If you're looking for a reliable way to keep your auxiliary batteries charged while travelling, the Renogy 40A DC-DC Battery Charger with MPPT is built to make off-grid power easier. Whether you're heading away in a caravan, camper trailer, 4WD or motorhome, this charger helps ensure your batteries stay charged and ready to power your essential equipment.

The 40A DC-DC Battery Charger with MPPT combines alternator charging and solar charging into one smart unit. While you're driving, it uses power from your vehicle's alternator to charge your auxiliary battery. When solar panels are connected, the integrated MPPT technology works to maximise the energy collected from the sun, helping you get more out of your solar setup.

With a powerful 40A charging capacity, this charger is ideal for larger battery banks and users with higher energy demands. It delivers efficient multi-stage charging that helps maintain battery health, improve charging performance and extend the overall lifespan of your batteries. This means less time worrying about power and more time enjoying your adventure.

The built-in MPPT solar controller continuously monitors solar input and adjusts to find the optimal charging point. This allows the system to capture more usable energy, even when weather conditions or sunlight levels change throughout the day. The result is faster and more efficient charging compared to traditional solar regulators.

Designed for tough Australian conditions, the Renogy 40A DC-DC Battery Charger with MPPT offers dependable performance wherever your travels take you. Whether you're powering a fridge, lighting, communication devices or other off-grid essentials, this charger provides a simple and effective solution for keeping your batteries charged and your power system running smoothly.

Renogy 40A DC-DC Battery Charger with MPPT  on a white background
Renogy 40A DC-DC Battery Charger with MPPT - features summary

Package Contents

  • Battery Charger x 1
  • Heat-shrink tubings x 7
  • Mounting Screws x 4
Renogy 40A DC-DC Battery Charger with MPPT  - seamless mode switching
Renogy 40A DC-DC Battery Charger with MPPT - on the rocks

Renogy 40A DC-DC Battery Charger with MPPT Specifications

Output Voltage 0-16V
Solar Input Voltage Range 12V -30V
DC Input Voltage Range 11.2V-24V
Alternator Input Traditional Alternator: 13.2-16.0VDC Smart Alternator (Euro 6): 12-16.0VDC
Maximum Output Current Rating 40A
Output Power 584W
Battery Types AGM, Gel, Flooded, Lithium-iron Phosphate
Input Fuse Rating 60A
Output Fuse Rating 50A
Charging Efficiency ≥93%
Idle Power Consumption <10 mA
Model RBC40D1S
Terminal Size /
Grounding Common Negative
Communication /
Operating Temperature -4℉ -113℉ /-20 ℃ - 45℃
Storage Temperature -4℉ -140℉ /-20 ℃ - 60℃
Humidity 0%~95% RH
Cooling Heat Sink
Enclosure Rating IP31
Dimensions (LxWxH) 1.2 kg /2.65 lb
Weight 1.2 kg /2.65 lb
Regulatory and Safety Specifications FCC Path 15, Class B,CE,RoHS,SAA
Renogy 40A DC-DC Battery Charger with MPPT - package content
Renogy 40A DC-DC Battery Charger with MPPT  - certifications

Renogy 40A DC-DC Battery Charger with MPPT Manuals and Guides

Renogy 40A DC-DC Battery Charger with MPPT Manual

Renogy 40A DC-DC Battery Charger with MPPT Warranty

Renogy DC-DC with MPPT Battery Charger manual
