Need dependable power anywhere? Choose the Renogy Core Mini 12.8V 200Ah LiFePO4 Battery w/ Low-Temperature Protection
The Renogy Core Mini 12.8V 200Ah LiFePO4 Battery is built for people who need dependable power without the bulk of traditional battery systems. Whether you're setting up an off-grid campsite, upgrading your caravan, powering a shed, or building a backup energy system at home, this battery gives you reliable performance in a compact and easy-to-manage design.
With a high-capacity 200Ah output, the Core Mini 12.8V 200Ah LiFePO4 Battery delivers steady power for running appliances, lighting, fridges, and other essential equipment for longer. Lithium iron phosphate technology, which is known for its safety, stability, and long service life, also means you get a battery that charges efficiently and performs consistently over thousands of cycles.

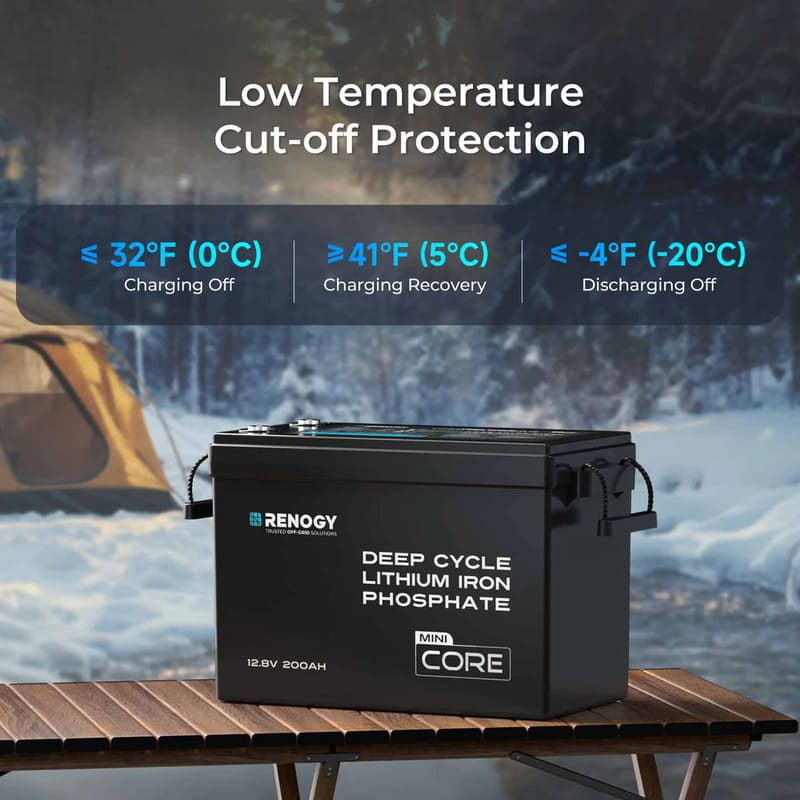

One of the standout features is the built-in low-temperature protection. This helps protect the battery when charging in colder conditions, making it a smart choice for travellers, off-grid setups, and outdoor applications where temperatures can drop unexpectedly. It gives you added peace of mind knowing your battery system is protected when conditions become challenging.
The Renogy Core Mini battery is also designed with flexibility in mind. It supports series and parallel configurations, allowing you to expand your system as your power needs grow. Whether you’re building a simple 12V setup or creating a larger 24V, 36V, or 48V system, this battery can adapt to suit your application.
Durability is another major advantage. With a rugged design, integrated Battery Management System (BMS), and IP65-rated protection against dust and water, the Core Mini 12.8V 200Ah LiFePO4 Battery is made to handle demanding environments. The BMS actively protects against overcharging, over-discharging, overheating, and short circuits, helping extend battery life while keeping your system running safely.
If you’re looking for a compact lithium battery that combines strong performance, long-term reliability, and practical protection features, the Renogy Core Mini 12.8V 200Ah LiFePO4 Battery is a dependable option that’s ready for work, travel, and off-grid living.
Renogy Core Mini 12.8V 200Ah LiFePO4 Battery Specifications
| Rated Capacity (0.5C, 25°C) | 200Ah |
| Nominal Voltage | 12.8V |
| Energy | 2560Wh |
| Cycle Life (0.5C/1C, 25℃) | 5000 Cycles (80% DOD, 80% EOL) |
Renogy Core Mini 12.8V 200Ah LiFePO4 Battery Discharge parameters
| Maximum Continuous Discharge Current | 200A |
| HeightPeak Discharge Current | 380A@10s |
Renogy Core Mini 12.8V 200Ah LiFePO4 Battery Charging parameters
| Voltage Range | 10V to 14.6V |
| Maximum Continuous Charge Current | 100A |
Renogy Core Mini 12.8V 200Ah LiFePO4 Battery Temperature Parameters
| Operation Temperature Range | Charge: 32°F to 131°F (0°C to 55°C) |
| Operation Temperature Range | Discharge: -4°F to 149°F (-20°C to 65°C) |
| Storage Temperature Range | -4°F to 140°F (-20°C to 60°C |
| Operation Relative Humidity | 5% to 95% |
Renogy Core Mini 12.8V 200Ah LiFePO4 Battery Mechanical Specifications
| Dimension (L x W x H) | 15.12×7.64×9.96 in/384×194×253 mm |
| Weight | 42.44 lbs / 19.25 kg |
| Terminal Bolt Size | M8×1.25×12 mm & M8×1.25×16 mm |
| Protection Rating | IP65 |
Frequently Asked Quetions
Can I use 4 x Renogy 100W 12V solar panels with this battery?
Yes, you can, provided your solar charge controller is correctly sized to handle the total solar input. Never connect solar panels directly to the battery without a compatible solar charge controller. If you’re unsure about the right setup, contact us for guidance on sizing your controller correctly.
Can this battery be used in a 48V system?
Yes. Renogy 12V Core Mini Series Batteries support series connection, allowing you to build 24V, 36V, or 48V systems. They can also be configured in series-parallel setups for larger off-grid power systems.

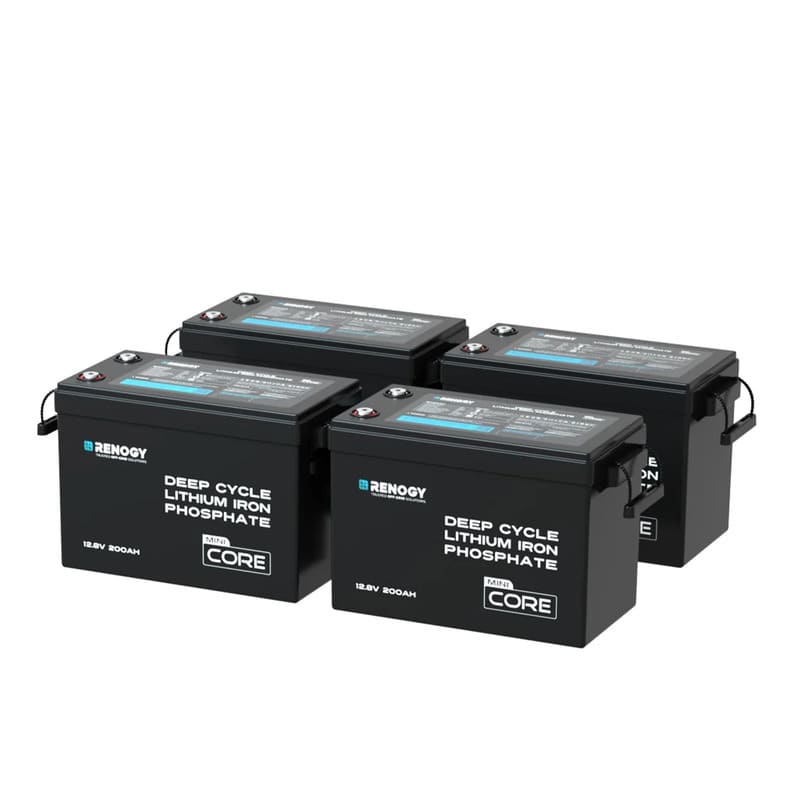

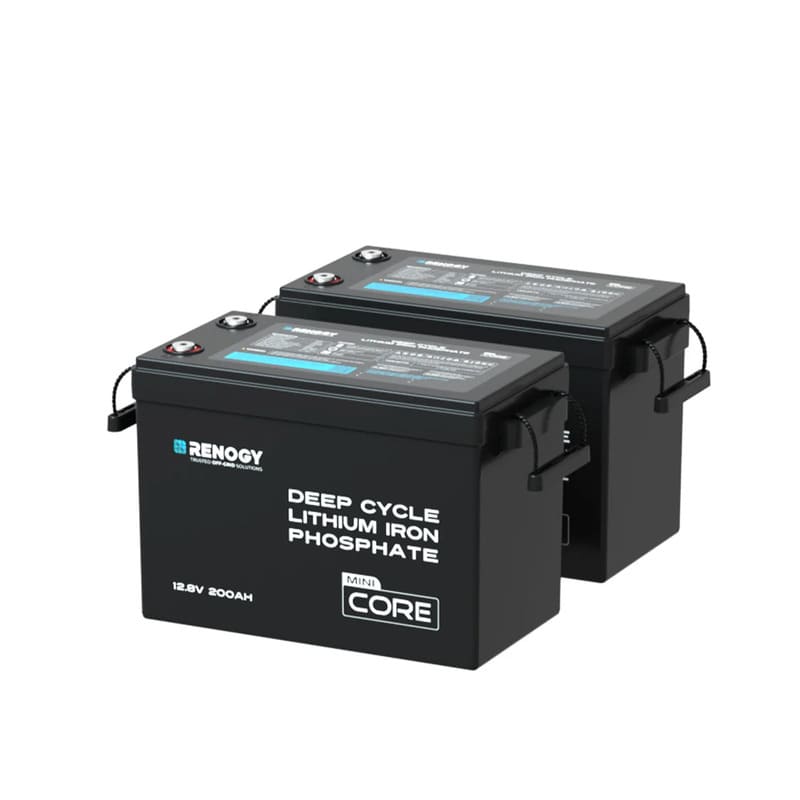

How many batteries can I connect together?
You can connect up to 4 batteries in series or up to 8 in parallel. For larger capacity systems, up to 16 batteries can be used in a 4S × 4P configuration. For best performance, always use batteries of the same model and similar age and capacity.
How long does the battery last?
The Renogy 12V 200Ah Core Mini Battery is rated for up to 5000 cycles at 80% depth of discharge. It also features a built-in 200A Battery Management System (BMS), IP65-rated protection, and a durable design built for demanding applications.

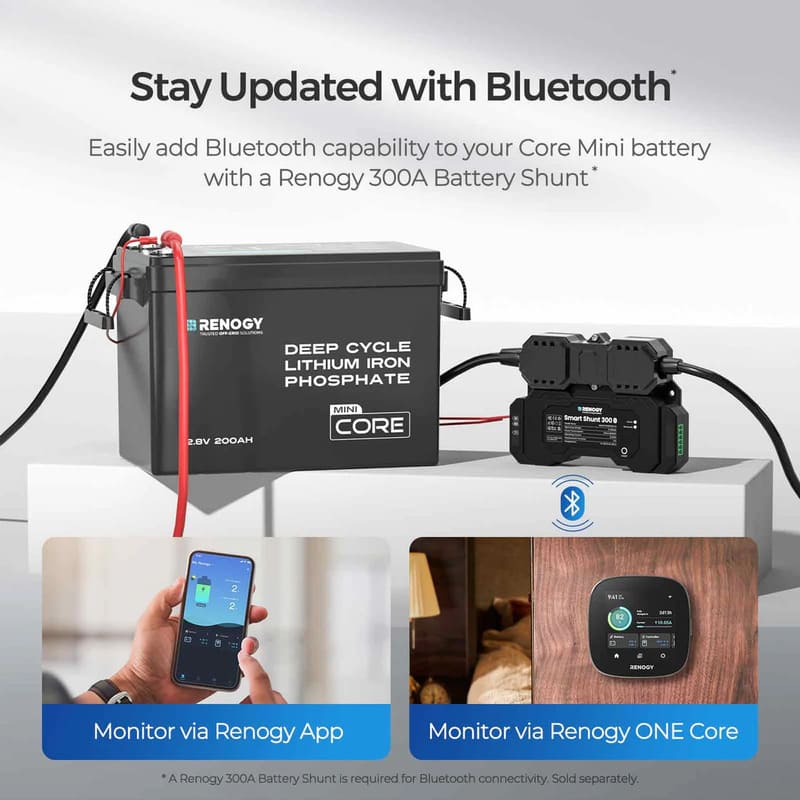

Can I monitor this battery with Bluetooth?
No. This battery is not compatible with the Renogy Bluetooth Module. To monitor battery status, a compatible battery monitor with shunt is recommended and sold separately.
How do I recharge this LiFePO4 battery?
These batteries can be charged using solar, DC-DC, or AC-DC charging systems. For safe and reliable charging, always use equipment specifically compatible with lithium iron phosphate (LiFePO4) batteries.
What should I know before wiring batteries in series or parallel?
Use cables of the same length and wire gauge across all battery connections to help maintain balanced current flow. Avoid mixing batteries from different brands, models, or ages, as this can lead to uneven charging, reduced performan
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
Warranty
5-year prorated material and workmanship warranty
