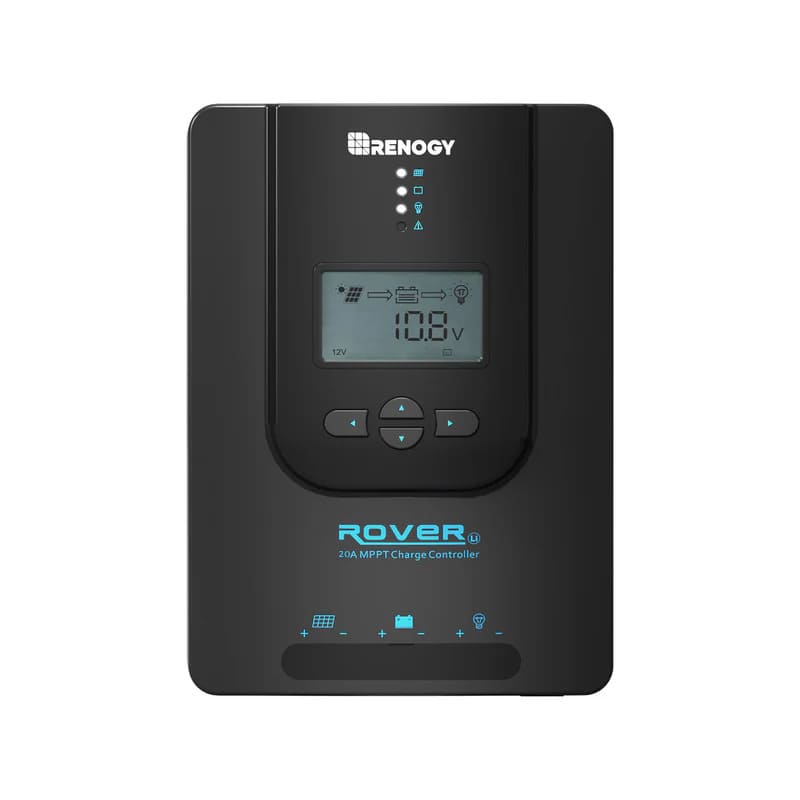

Renogy Rover Li 20 Amp MPPT Solar Charge Controller
WHY BUY FROM US:
Get tailored advice for your power needs
✓ Talk to an Expert: 1300 627 685
✓ Free Shipping Australia Wide
✓ 30 Day Returns
✓ Price Beat Guarantee
✓ Lifetime Customer Support
Looking for Smarter Solar Charging? Renogy Rover Li 20 Amp MPPT Solar Charge Controller Has You Covered!
The Rover Li 20 Amp MPPT Solar Charge Controller is a smart and reliable way to get more from your solar power system. Whether you're setting up a caravan, camper trailer, 4WD, boat, or off-grid solar installation, this controller helps ensure your batteries are charged efficiently and safely. It uses advanced MPPT technology to maximise the energy collected from your solar panels, helping you make the most of every bit of available sunlight.

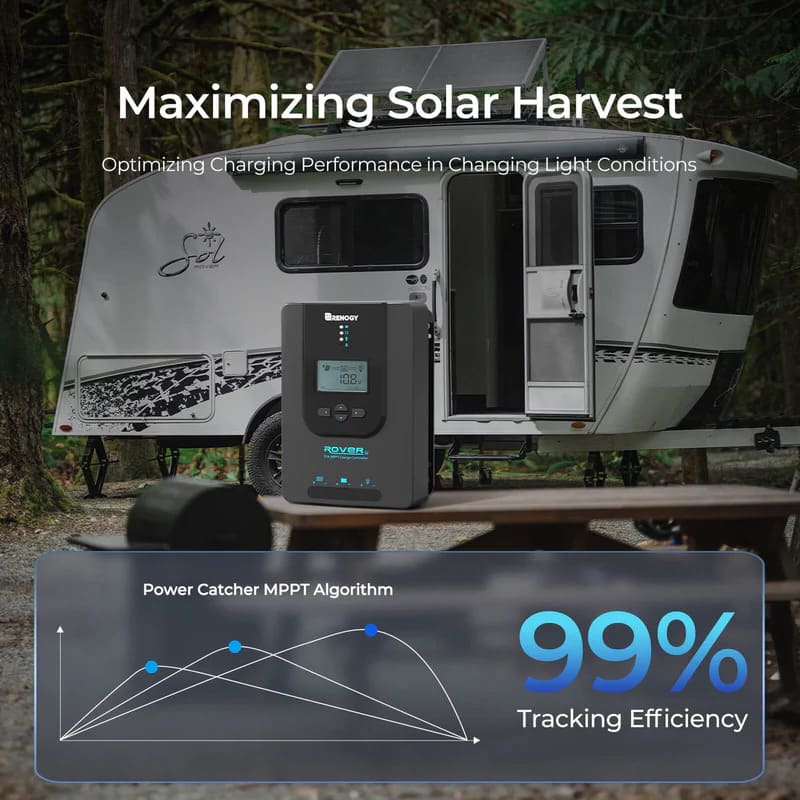

One of the biggest advantages of the Rover Li 20 Amp MPPT Solar Charge Controller is its ability to increase charging efficiency compared to traditional PWM controllers. By constantly tracking the optimal power point of your solar panels, it can harvest more usable energy and deliver it to your battery bank. This means faster charging and better overall system performance, especially during changing weather conditions.
Designed with lithium batteries in mind, the Rover Li controller is also compatible with a range of battery types, making it a flexible choice for many different solar setups. Built-in protection features help safeguard your batteries against overcharging, over-discharging, short circuits, reverse polarity, and other common electrical issues. This gives you peace of mind while protecting your investment.
The compact design makes installation simple, while the intuitive interface allows you to easily monitor and manage your charging system. Whether you're heading off on a weekend adventure or powering an off-grid lifestyle, the Rover Li 20 Amp MPPT Solar Charge Controller provides dependable performance you can count on.
If you're looking for a solar charge controller that delivers efficiency, reliability, and advanced battery protection, the Rover Li 20 Amp MPPT Solar Charge Controller is a smart addition to your solar power system. It helps maximise solar energy production while keeping your batteries operating at their best for longer.

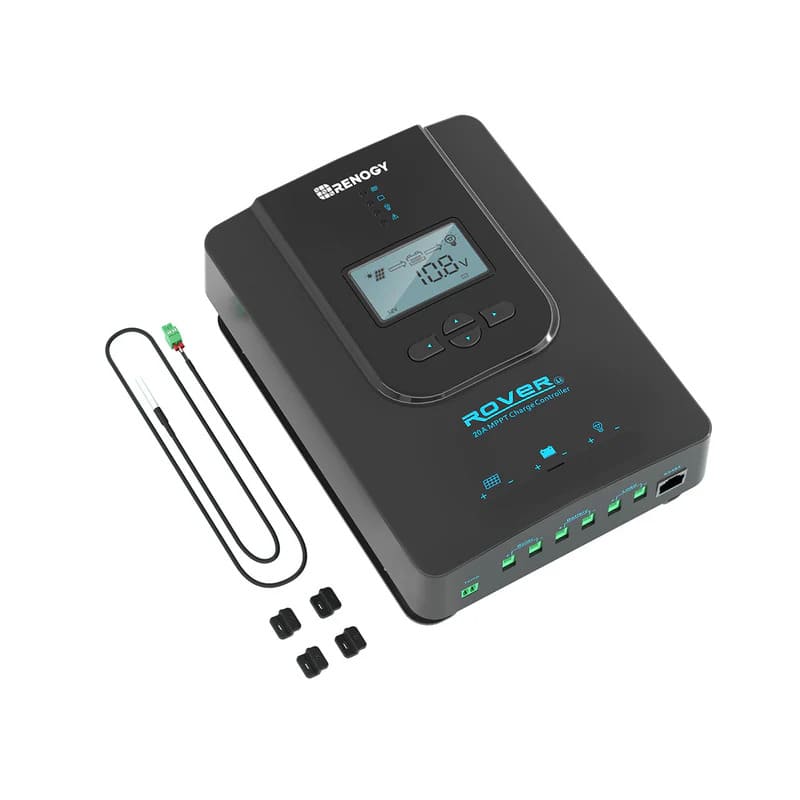

20A MPPT Solar Charge Controller Package
- Rover Li 20 Amp MPPT Charge Controller x 1
- Remote Temperature Sensor x 1
- Mounting Brackets x 4

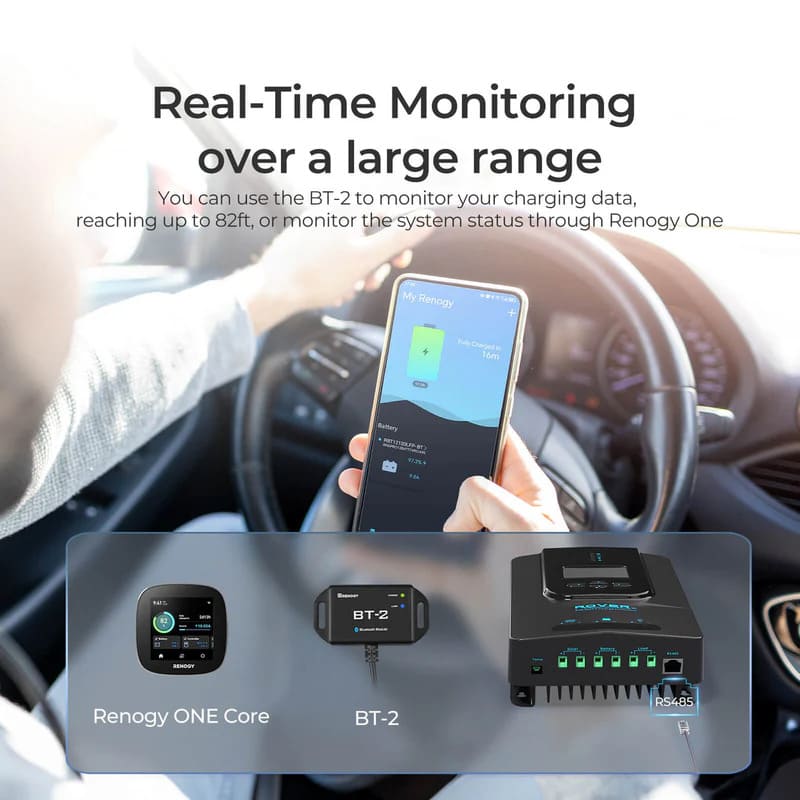

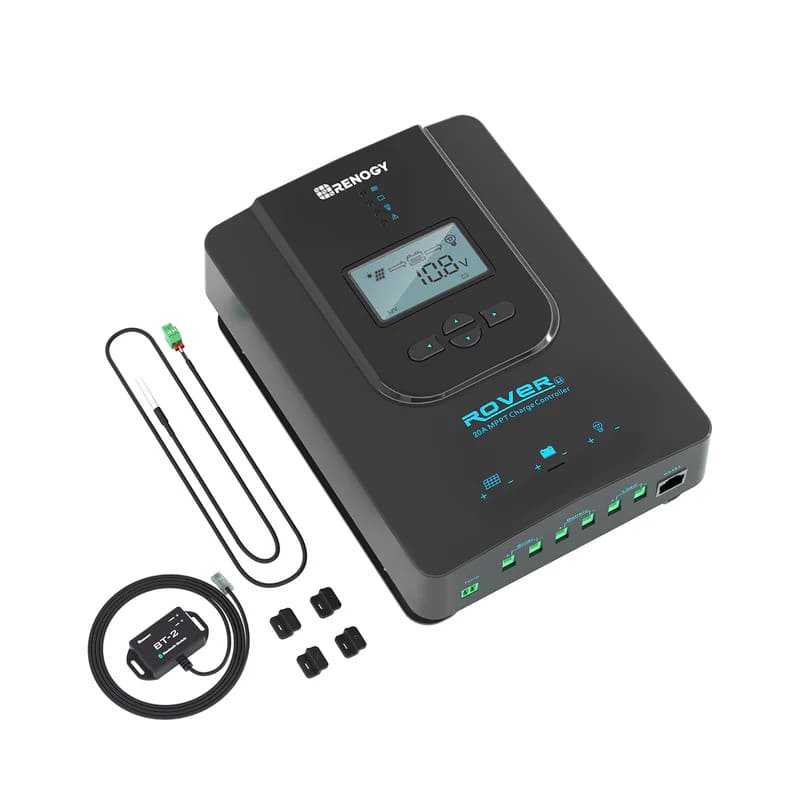

Bluetooth Module Option Package
- Rover Li 20 Amp MPPT Charge Controller x 1
- BT-2 Bluetooth Module x 1
- Remote Temperature Sensor x 1
- Mounting Brackets x 4
Electrical and Mechanical Specifications

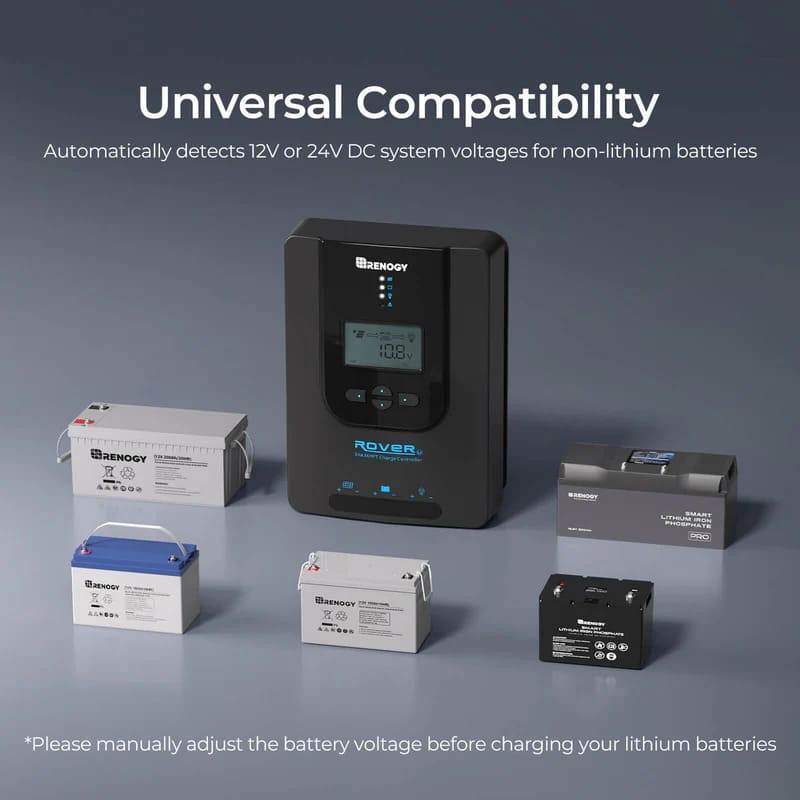

| Nominal System Voltage: | 12/24V (Auto-Detect for Non-Lithium Batteries) |
| Rated Charge Current: | 20A |
| Max. PV Input Voltage: | 95VDC |
| Max. PV Input Power: | 12V/260W, 24V/520W |
| Power Consumption: | ＜100mA/12V; ＜58mA/24V |
| Max Battery Voltage: | 32V |
| Ground Type: | Negative |

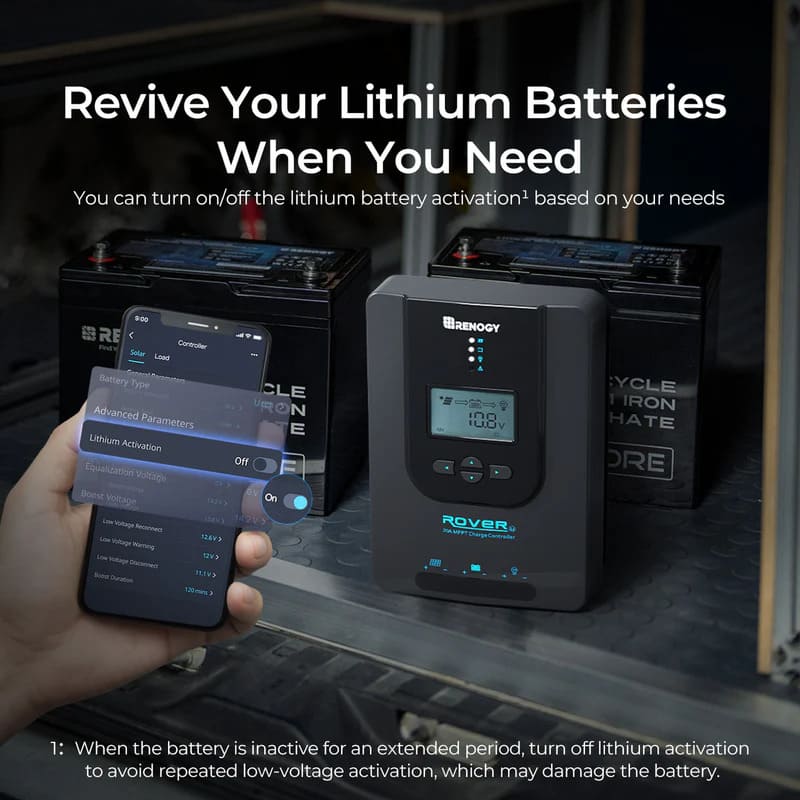

| Electrical Protection: | Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries. |
| Dimensions: | 210 x 151 x 68 mm; 8.27 x 5.95 x 2.69 in |
| Weight: | 3.1 lbs / 1.4 kg |
| Max. Terminals Size: | 8 AWG 10mm2 |
Environmental Data
| Protection Level: | IP32 |
| Operating Temperature Range: | -35°C to 45°C; -31°F to 113°F |
| Storage Temperature Range: | -35°C to 75°C; -31°F to 167°F |
| Operating / Storage Humidity: | ≤ 90%, No Condensation |
| Temperature Compensation: | -3mV/°C/2V |
Certifications and Warranty
| CE: | YES |
| FCC Class B Part 15 Compliant: | YES |
| Material and workmanship warranty: | 3 Years |
| FCC Class B Part 15 Compliant: | YES |
