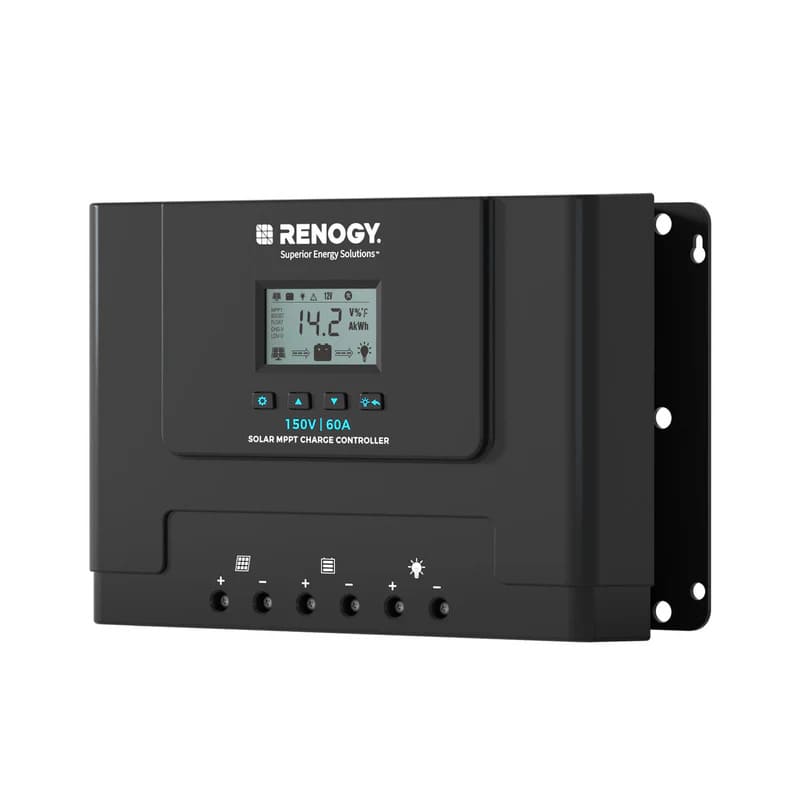

Renogy Rover Lite 12V/ 24V/ 36V/ 48V 60A MPPT Solar Charge Controller
WHY BUY FROM US:
Get tailored advice for your power needs
✓ Talk to an Expert: 1300 627 685
✓ Free Shipping Australia Wide
✓ 30 Day Returns
✓ Price Beat Guarantee
✓ Lifetime Customer Support
Need Efficient Solar Charging for Your Battery System? Renogy Rover Lite 12V/24V/36V/48V 60A MPPT Solar Charge Controller Has the Power You Need
The Rover Lite 12V/24V/36V/48V 60A MPPT Solar Charge Controller is a powerful and efficient solution for anyone looking to get more from their solar power system. Whether you're running a caravan, 4WD, boat, tiny home, or off-grid property, this controller helps ensure your batteries receive the best possible charge while maximising the energy produced by your solar panels.
Using advanced MPPT technology, the Rover Lite 12V/24V/36V/48V 60A MPPT Solar Charge Controller continuously tracks the ideal voltage and current from your solar array. This allows it to capture more energy than traditional charge controllers and convert it into usable power for your batteries. The result is faster charging, improved efficiency, and better overall system performance.

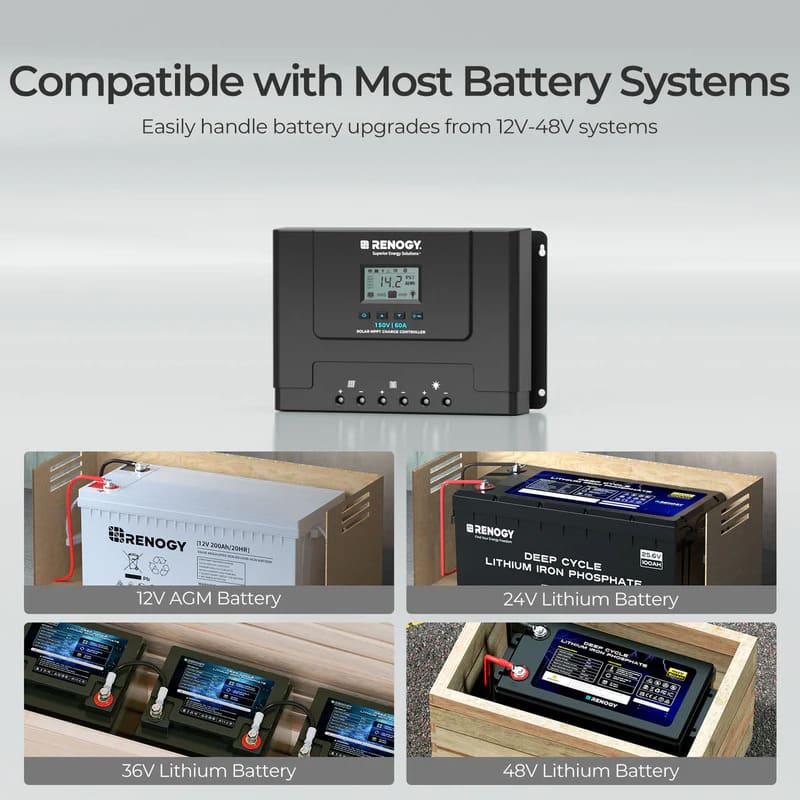

One of the key benefits of this controller is its versatility. It automatically supports 12V, 24V, 36V, and 48V battery systems, making it suitable for a wide range of solar installations. Whether you're upgrading an existing setup or building a new system from scratch, the Rover Lite offers the flexibility needed to grow with your power requirements.
The Rover Lite 12V/24V/36V/48V 60A MPPT Solar Charge Controller is also designed with battery protection in mind. Built-in safety features help protect against overcharging, short circuits, reverse polarity, overheating, and other common electrical issues. This helps extend battery life and provides added confidence when operating your solar system in demanding conditions.
Easy to install and simple to operate, this charge controller is ideal for users who want reliable solar charging without unnecessary complexity. With its high 60A charging capacity, intelligent power management, and dependable performance, the Rover Lite 12V/24V/36V/48V 60A MPPT Solar Charge Controller is a smart choice for anyone seeking efficient and reliable off-grid power.
Package Contents of Rover Lite 12V/ 24V/ 36V/ 48V 60A MPPT Solar Charge Controller
- Solar Charge Controller x 1
- Manual Book x 1
- Battery Temperature Sensor x 1
- Mounting Screws x 4
Rover Lite 12V/ 24V/ 36V/ 48V 60A MPPT Solar Charge Controller General Data
| Grounding | Common Negative |
| Communication | RS485 |
| Operating Temperature | -31℉ -113℉ /-35 ℃ - 65℃ |
| Storage Temperature | -40℉ -176℉ /-40 ℃ - 80℃ |
| Humidity | 0%~95% RH |
| Cooling | Heat Sink |
| Enclosure Rating | IP32 |
| Dimensions (LxWxH) | 305 x 205 x 99 mm / 12.01 x 8.07 x 3.90 inch |
| Weight | 3.5 kg /7.71 lb |
| Regulatory and Safety Specifications | FCC Path 15, Class B,CE,RoHS |
Rover Lite 12V/ 24V/ 36V/ 48V 60A MPPT Solar Charge Controller Electrical Data
| Rated Battery Input Voltage | Non-Lithium: 12VDC / 24 VDC / 36 VDC /48 VDC (Auto Recognition) |
| Battery Input Voltage Range | 9VDC~64VDC |
| Rated Charge Current | 60A |
| Maximum Solar Input Power | 900 W (12V Battery);1800W (24V Battery);2000 W (36V Battery);3200W (48V Battery) |
| Maximum Solar Input Voltage (Voc) | 150VDC |
| Power Consumption | ＜15 ma (12V Battery),＜11 ma（24V Battery）, ＜8 ma （36V Battery）, ＜7 ma（48V Battery） |
| MPPT Tracking Efficiency | >99% |
| Conversion Efficiency | >97% |
| Temperature Compensation | -3mV / ℃ / 2V (Non-Lithium) 0mV / ℃ / 2V; no compensation (Lithium) |
| Charger Algorithm | 3-stage Lead Acid, Bulk, Boost, Float, Equalize* 2-Stage Lithium, Bulk, Boost |
| Charger Preset | AGM, Gel, Flooded, Lithium-iron Phosphate, User Custom |
| Warranty | 2 years material and workmanship warranty |
